Acetato di etile

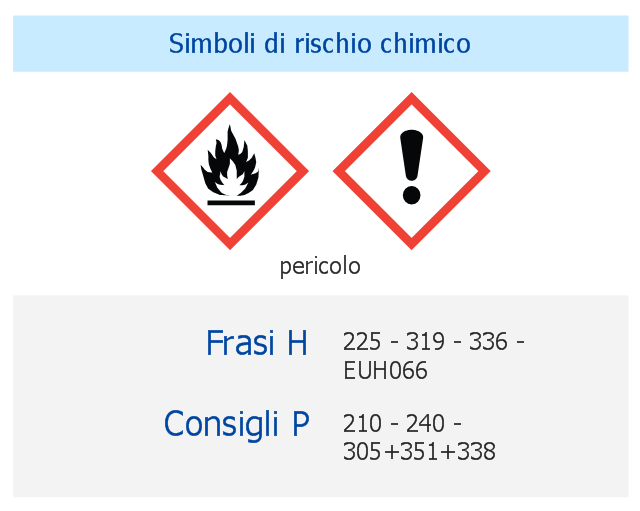

This italian chemical safety infographic example shows the ethyl acetate infobox including 3 sections: GHS hazard pictograms, Hazard statements and Precautionary statements. It was designed on the base of the table from the Wikimedia Commons file: Consigli P.png. [commons.wikimedia.org/wiki/File:Consigli_P.png] "Ethyl acetate is the organic compound with the formula CH3–COO–CH2–CH3. This colorless liquid has a characteristic sweet smell (similar to pear drops) and is used in glues, nail polish removers, decaffeinating tea and coffee, and cigarettes (see list of additives in cigarettes). Ethyl acetate is the ester of ethanol and acetic acid; it is manufactured on a large scale for use as a solvent." [Ethyl acetate. Wikipedia] The chemical safety infographic sample "Acetato di etile" was created using ConceptDraw PRO software extended with the GHS Hazard Pictograms solution from the Engineering area of ConceptDraw Solution Park.
Chemical safety infographic
Chemical safety infographic, GHS07 harmful, hazard communication standard pictogram, exclamation mark, GHS02 flammable, hazard communication standard pictogram, flame,
