Design elements - Tilt and turn window elements

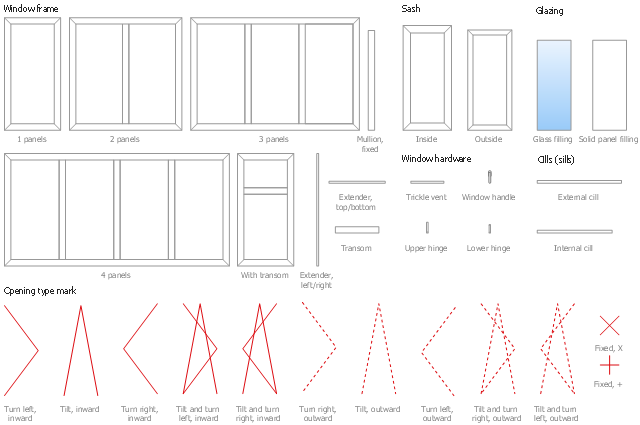

The vector stencils library "Tilt and turn window elements" contains 25 window parts. Use it to draw outside and inside views of tilt and turn windows with ConceptDraw PRO software. "A tilt and turn window can both tilt inwards at the top or open inwards from hinges at the side. This is the most common type of window in Germany, its country of origin. It is also widespread in many other European countries. In Europe it is usual for these to be of the "turn first" type. i.e. when the handle is turned to 90 degrees the window opens in the side hung mode. With the handle turned to 180 degrees the window opens in bottom hung mode. Most usually in the UK the windows will be "tilt first" i.e. bottom hung at 90 degrees for ventilation and side hung at 180 degrees for cleaning the outer face of the glass from inside the building." [Window. Wikipedia] The vector stencils sample "Design elements - Tilt and turn window elements" is included in Tilt and turn windows solution from Building plans area of ConceptDraw Solution Park.
Vector stencils
Vector stencils, window, sash, window, glass filling, window handle, window frame, upper hinge, trickle vent, transom, window frame, tilt and turn window, right-side hung sash, tilt and turn window, left-side hung sash, solid panel filling, mullion, window, lower hinge, internal cill, frame extender, top, bottom, fixed, x, fixed, +, external cill, Frame extender, left, right ,
