Design elements - Cisco telepresence

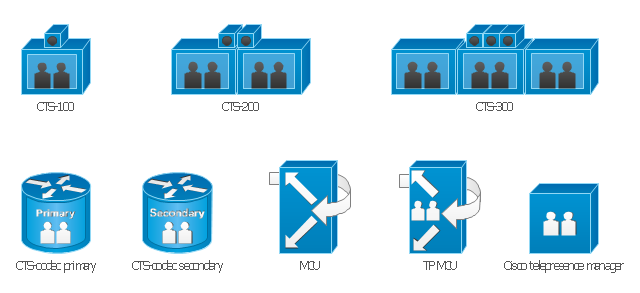

The vector stencils library "Cisco telepresence" contains 8 symbols of videoconference and telepresence equipment: Cisco TelePresence Systems, CTS-codecs primary and secondary, multipoint control unit (MCU), TelePresence MCU (TP MCU), Cisco telepresence manager. Use it to create the computer network diagrams using the ConceptDraw PRO diagramming and vector drawing software. "A teleconference or teleseminar is the live exchange and mass articulation of information among several persons and machines remote from one another but linked by a telecommunications system. Terms such as audio conferencing, telephone conferencing and phone conferencing are also sometimes used to refer to teleconferencing. The telecommunications system may support the teleconference by providing one or more of the following: audio, video, and/or data services by one or more means, such as telephone, computer, telegraph, teletypewriter, radio, and television." [Teleconference. Wikipedia] The example "Design elements - Cisco telepresence" is included in the Cisco Network Diagrams solution from the Computer and Networks area of ConceptDraw Solution Park.
Cisco telepresence symbols
Cisco telepresence symbols, TP MCU, MCU, Cisco telepresence manager, CTS-codec secondary, CTS-codec primary, CTS-300, CTS-200, CTS-100,
