Design elements - Integrated circuit

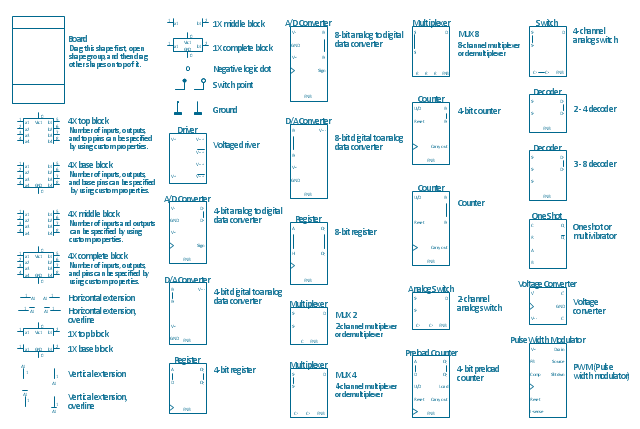

The vector stencils library "Integrated circuit" contains 43 component symbols: transducers, rotary devices, converters, registers, analog switches, counters, registers, decoders, and multiplex transmitters. "An integrated circuit or monolithic integrated circuit (also referred to as an IC, a chip, or a microchip) is a set of electronic circuits on one small plate ("chip") of semiconductor material, normally silicon. This can be made much smaller than a discrete circuit made from independent components. Integrated circuits are used in virtually all electronic equipment today and have revolutionized the world of electronics. Computers, mobile phones, and other digital home appliances are now inextricable parts of the structure of modern societies, made possible by the low cost of producing integrated circuits." [Integrated circuit. Wikipedia] The symbols example "Design elements - Integrated circuit" was drawn using the ConceptDraw PRO diagramming and vector drawing software extended with the Electrical Engineering solution from the Engineering area of ConceptDraw Solution Park.
Integrated circuit components
Integrated circuit components, voltage converter, switch point, section, integrated chip, one shot, multivibrator, negative logic, dot, ground, ground connection, driver, voltage driver, decoder, counter, board, PWM, MUX 8, 8-channel, multiplexer, demultiplexer, MUX 4, 4-channel, multiplexer, demultiplexer, MUX 2, 2-channel, multiplexer, demultiplexer, 8-bit, digital to analog, data converter, 8-bit, analog to digital, data converter, 8-bit register, 4-channel, analog switch, 4-bit, register, 4-bit, preload counter, 4-bit, digital to analog, data converter, 4-bit, analog to digital, data converter, 4-bit counter, 2-channel, analog switch,
