External digital devices - Vector stencils library

The vector stencils library "External digital devices" contains 15 clipart images of external digital devices and equipment for drawing computer network diagrams. "Digital electronics, or digital (electronic) circuits, represent signals by discrete bands of analog levels, rather than by a continuous range. All levels within a band represent the same signal state. Relatively small changes to the analog signal levels due to manufacturing tolerance, signal attenuation or parasitic noise do not leave the discrete envelope, and as a result are ignored by signal state sensing circuitry. ... Digital techniques are useful because it is easier to get an electronic device to switch into one of a number of known states than to accurately reproduce a continuous range of values. ... An advantage of digital circuits when compared to analog circuits is that signals represented digitally can be transmitted without degradation due to noise. ... In a digital system, a more precise representation of a signal can be obtained by using more binary digits to represent it. While this requires more digital circuits to process the signals, each digit is handled by the same kind of hardware. ... Computer-controlled digital systems can be controlled by software, allowing new functions to be added without changing hardware. Often this can be done outside of the factory by updating the product's software. So, the product's design errors can be corrected after the product is in a customer's hands. Information storage can be easier in digital systems than in analog ones. The noise-immunity of digital systems permits data to be stored and retrieved without degradation. ... In a digital system, as long as the total noise is below a certain level, the information can be recovered perfectly." [Digital electronics. Wikipedia] The clip art example "External digital devices - Vector stencils library" was created using the ConceptDraw PRO diagramming and vector drawing software extended with the Computer and Networks solution from the Computer and Networks area of ConceptDraw Solution Park. www.conceptdraw.com/solution-park/computer-and-networks
Bluetooth, Bluetooth,
Flash Drive
Flash Drive, Flash Drive,
Professional Camera
Professional Camera, professional camera,
Digital Camera
Digital Camera, digital camera,
Iomega ZIP
Iomega ZIP, Iomega ZIP,
iPod nano
iPod nano, iPod nano,
iPod Touch
iPod Touch, iPod Touch,
iPod Shuffle
iPod Shuffle, iPod Shuffle,
iPod Classic
iPod Classic, iPod Classic,
IPod, IPod,

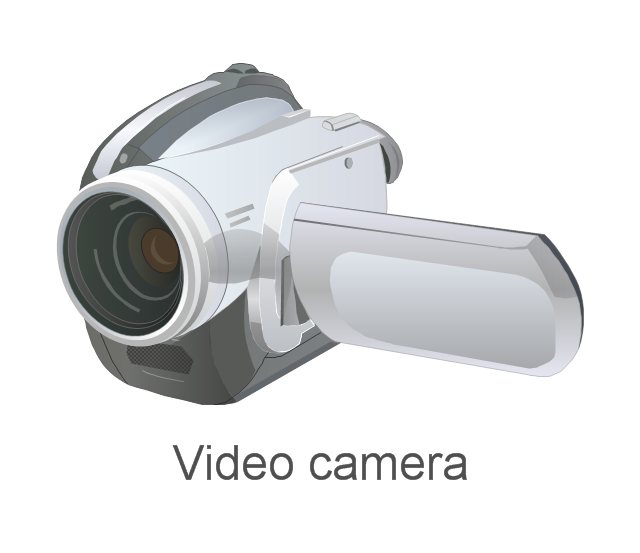

Video camera
Video camera, video camera,

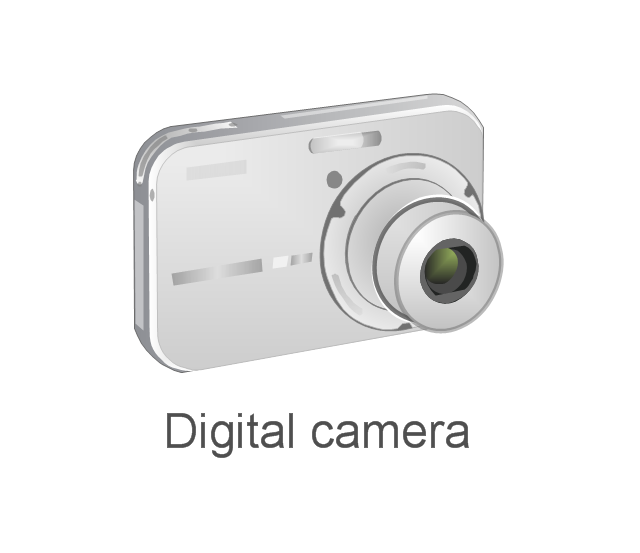

Digital camera
Digital camera, digital camera,
Digital camera
Digital camera, digital camera,
