Ethernet local area network layout floor plan

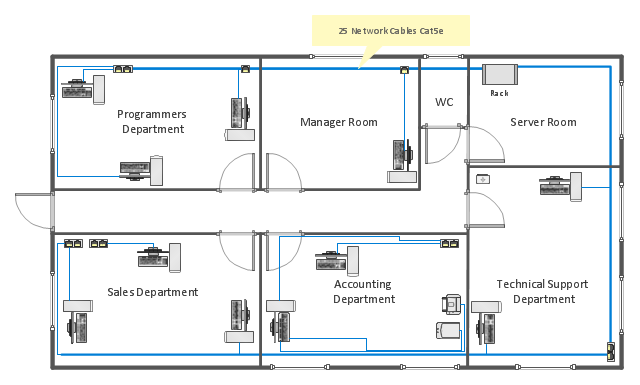

"The Ethernet physical layer is the physical layer component of the Ethernet family of computer network standards. The Ethernet physical layer evolved over a considerable time span and encompasses quite a few physical media interfaces and several magnitudes of speed. The speed ranges from 1 Mbit/s to 100 Gbit/s, while the physical medium can range from bulky coaxial cable to twisted pair and optical fiber. In general, network protocol stack software will work similarly on all physical layers. 10-gigabit Ethernet was already used in both enterprise and carrier networks by 2007, with 40 Gbit/s and 100 Gbit/s Ethernet ratified. ... Many Ethernet adapters and switch ports support multiple speeds, using autonegotiation to set the speed and duplex for the best values supported by both connected devices. If auto-negotiation fails, a multiple-speed device will sense the speed used by its partner, but will assume half-duplex. A 10/100 Ethernet port supports 10BASE-T and 100BASE-TX. A 10/100/1000 Ethernet port supports 10BASE-T, 100BASE-TX, and 1000BASE-T." [Ethernet physical layer. Wikipedia] The LAN equipment and cabling layout floorplan example "Ethernet local area network layout floor plan" was created using the ConceptDraw PRO diagramming and vector drawing software extended with the Network Layout Floor Plans solution from the Computer and Networks area of ConceptDraw Solution Park. www.conceptdraw.com/solution-park/computer-networks-layout-floor-plans
