Power sources - Vector stencils library

The vector stencils library "Power sources" contains 9 element symbols of power sources, power supplies and batteries. Use these shapes for drawing the electrical schematics and electronic circuit diagrams in the ConceptDraw PRO diagramming and vector drawing software extended with the Electrical Engineering solution from the Engineering area of ConceptDraw Solution Park. www.conceptdraw.com/solution-park/engineering-electrical

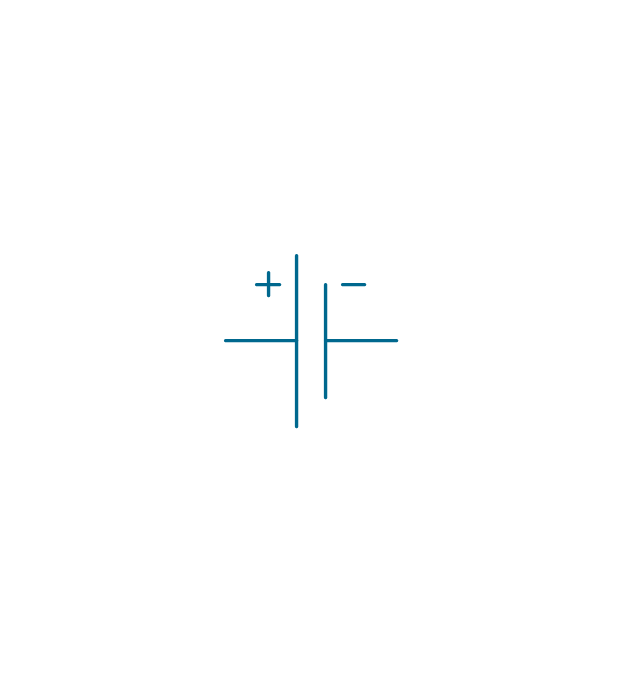

Battery with polarity labels
Battery with polarity labels,

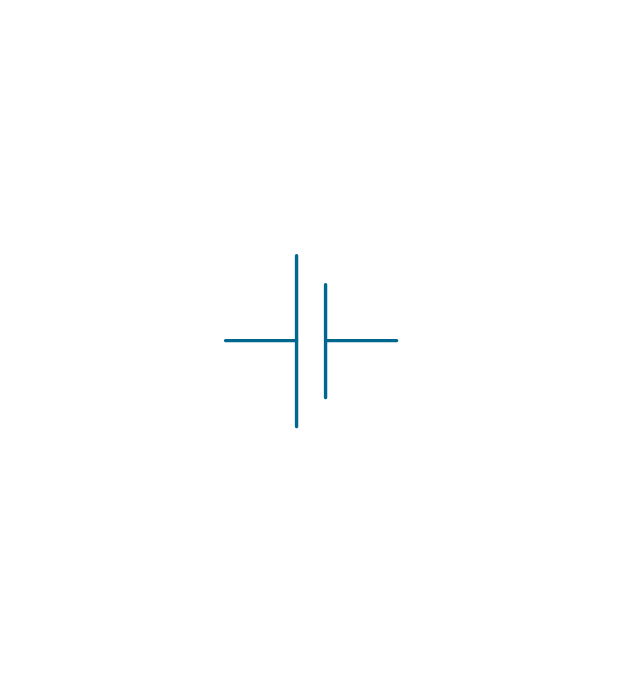

Battery, battery,
Ideal current source
Ideal current source, ideal source,  ideal current source,

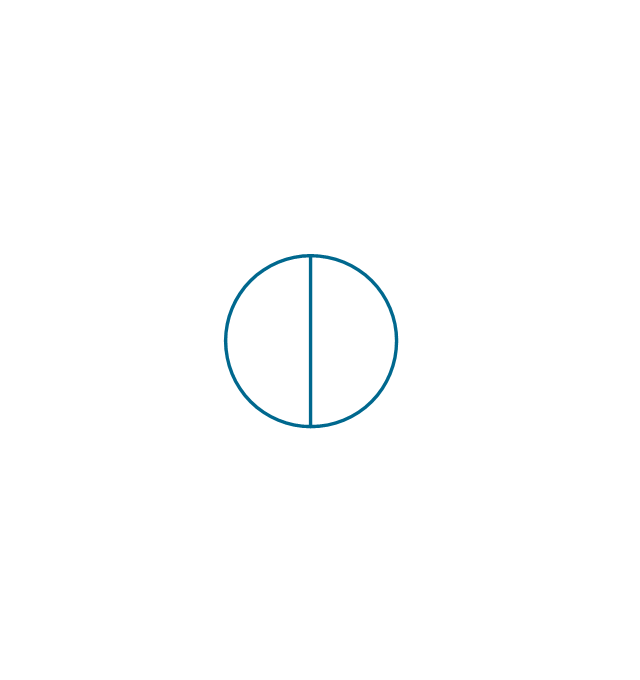

Ideal voltage source
Ideal voltage source, ideal source,  ideal voltage source,
Oscillator, oscillator, alternating-current source,

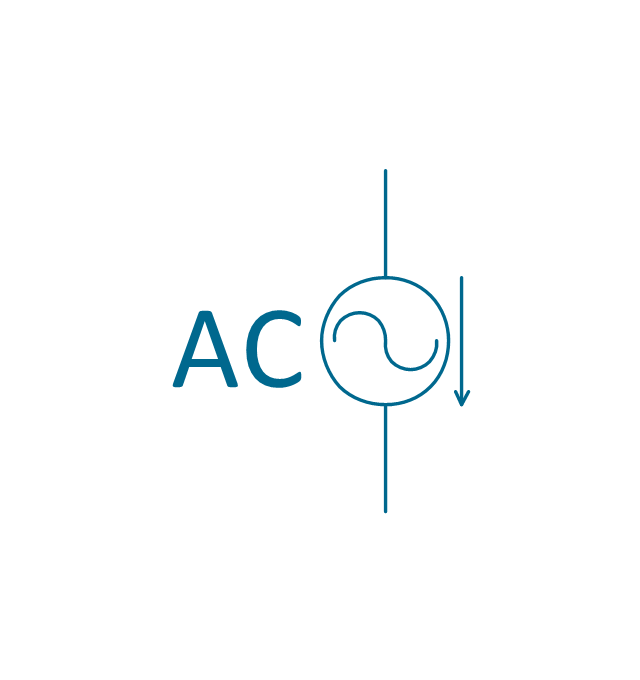

AC current source
AC current source, AC source, AC current source,
AC voltage source
AC voltage source, AC source, AC voltage source,
DC current source
DC current source, DC source, DC current source,
DC voltage source
DC voltage source, DC source, DC voltage source,
