Design elements - Bank UML package diagram

The vector stencils library "Bank UML package diagram" contains 5 shapes for drawing UML package diagrams. Use it for object-oriented modeling of your bank information system. "A package diagram in the Unified Modeling Language depicts the dependencies between the packages that make up a model. In addition to the standard UML Dependency relationship, there are two special types of dependencies defined between packages: * package import, * package merge. Elements. 1. Package: a general purpose mechanism for organizing model elements & diagrams into groups. It provides an encapsulated namespace within which all the names must be unique. It is used to group semantically related elements. It is a namespace as well as an element that can be contained in other packages' namespaces. 2. Class: a representation of an object that reflects its structure and behavior within the system. It is a template from which running instances are created. Classes usually describe the logical structure of the system. 3. Interface: a specification of behavior. An implementation class must be written to support the behavior of an interface class. 4. Object: an instance of a class. It is often used in analysis to represent an artifact or other item. 5. Table: a stereotyped class." [Package diagram. Wikipedia] This example of UML package diagram symbols for the ConceptDraw PRO diagramming and vector drawing software is included in the ATM UML Diagrams solution from the Software Development area of ConceptDraw Solution Park.

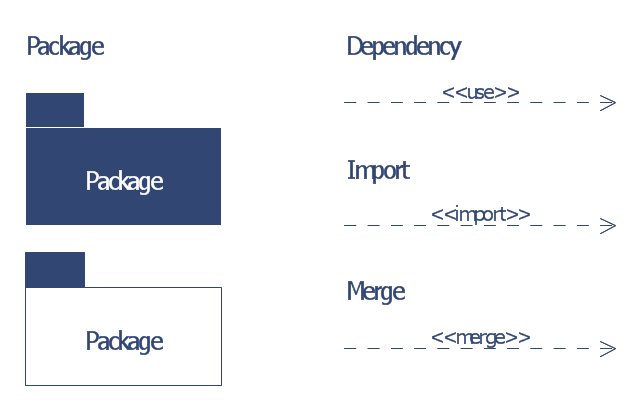

UML package diagram symbols
UML package diagram symbols, package merge, package import, element import, package, dependency,
