School HVAC plan

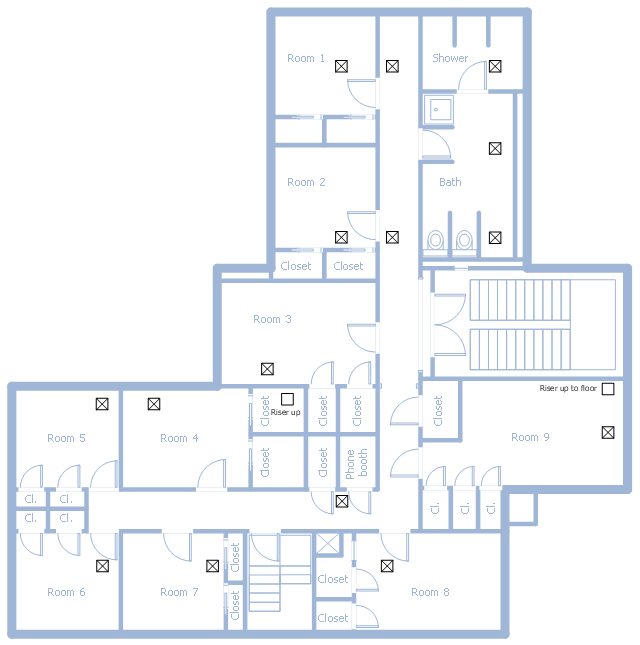

This school HVAC plan sample represent layout of air conditioning ductwork inlets and outlets. "Air conditioning (often referred to as A/C or AC) is the process of altering the properties of air (primarily temperature and humidity) to more comfortable conditions, typically with the aim of distributing the conditioned air to an occupied space such as a building or a vehicle to improve thermal comfort and indoor air quality. In common use, an air conditioner is a device that removes heat from the air inside a building or vehicle, thus lowering the air temperature. The cooling is typically achieved through a refrigeration cycle, but sometimes evaporation or free cooling is used. Air conditioning systems can also be made based on desiccants." [Air conditioning. Wikipedia] The fllor plan example "School HVAC plan" was created using the ConceptDraw PRO diagramming and vector drawing software extended with the HVAC Plans solution from the Building Plans area of ConceptDraw Solution Park.
Floor plan
Floor plan, window, casement, wall, toilet, supply, duct, straight staircase, stair landing, scissor staircase, pocket door, opening, exterior wall, equipment, double door, door, basin,
