Vector stencils library - Profiles and Model

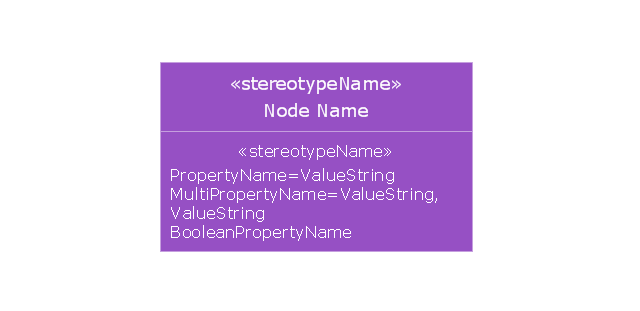

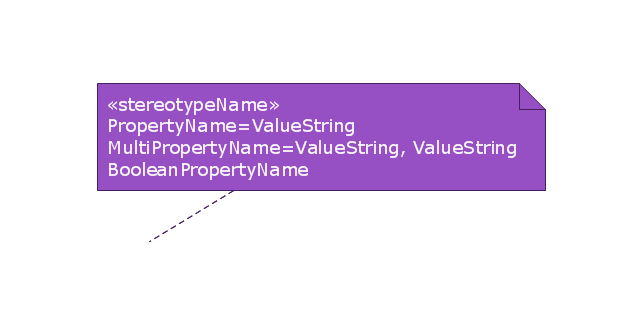

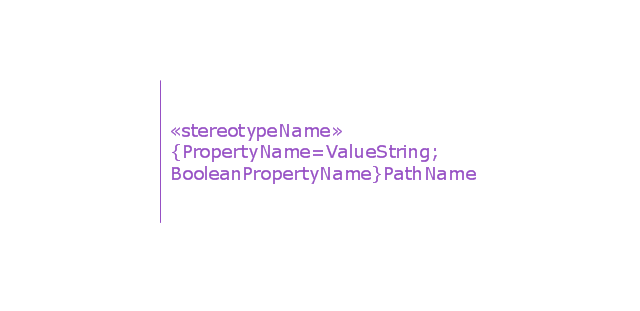

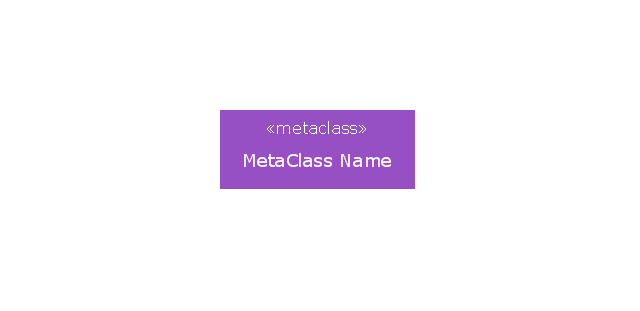

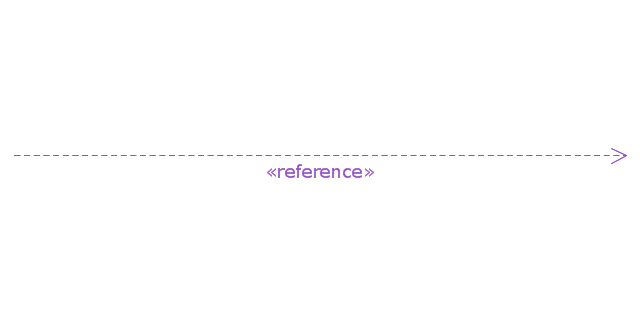

This vector stencils library contains 14 profile and model symbols. Use it to design your SysML diagrams using ConceptDraw PRO diagramming and vector drawing software. "The Profiles package contains mechanisms that allow metaclasses from existing metamodels to be extended to adapt them for different purposes. This includes the ability to tailor the UML metamodel for different domains. The profiles mechanism is consistent with the OMG Meta Object Facility (MOF). SysML has added some notational extensions to represent stereotype properties in compartments as well as notes. ... The Usage Examples sub clause provides guidance both on how to use existing profiles and how to create new profiles. In addition, the examples provide guidance on the use of model libraries. A model library is a library of model elements including class and other type definitions that are considered reusable for a given domain. These guidelines can be applied to further customize SysML for domain specific applications such as automotive, military, or space systems." [www.omg.org/spec/SysML/1.3/PDF] The vector stencils library "Profiles and Model" is included in the SysML solution from the Software Development area of ConceptDraw Solution Park.
