Design elements - Telecommunication networks

"A telecommunications network is a collection of terminal nodes, links and any intermediate nodes which are connected so as to enable telecommunication between the terminals. The transmission links connect the nodes together. The nodes use circuit switching, message switching or packet switching to pass the signal through the correct links and nodes to reach the correct destination terminal. Each terminal in the network usually has a unique address so messages or connections can be routed to the correct recipients. The collection of addresses in the network is called the address space. Examples of telecommunications networks are: computer networks, Internet, telephone network, global Telex network, aeronautical ACARS network." [Telecommunications network. Wikipedia] The example "Design elements - Telecommunication networks" was created using the ConceptDraw PRO diagramming and vector drawing software extended with the Telecommunication Network Diagrams solution from the Computer and Networks area of ConceptDraw Solution Park.

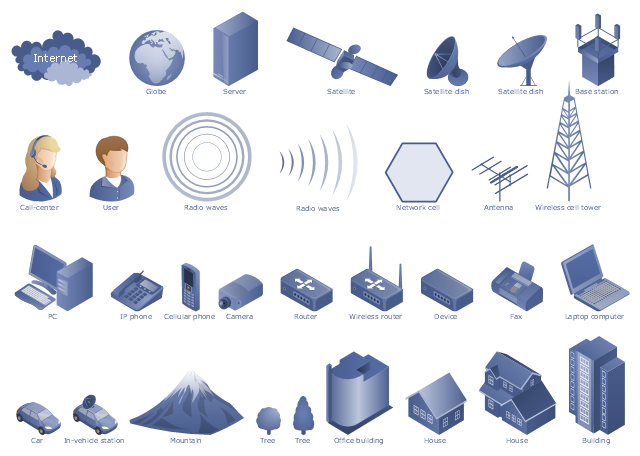

Telecommunication diagram symbols
Telecommunication diagram symbols, wireless router, tree, server, satellite dish, satellite, router, radio waves, office building, network cell, cell, honeycomb, mountain, man, user, laptop computer, notebook, in-vehicle station, house, globe, Internet, fir-tree, tree, fax, device, cellular phone, mobile phone, car, camera, call-center, call operator, woman, building, base station, antenna, PC, Internet, cloud, IP phone,
