How to Create Multipage Diagram

By default, a ConceptDraw DIAGRAM document contains a single page. However, creating a multi-page document is often necessary when developing graphic documentation that consists of several related diagrams. In such documents, each page contains a separate diagram, while all pages remain logically connected within a single file.

ConceptDraw DIAGRAM allows you to customize your documents by adding new pages, duplicating existing pages, rearranging page order, and applying custom backgrounds. This flexibility makes it easy to organize complex projects and maintain consistency across multiple diagrams.

1. Open a ConceptDraw DIAGRAM document.
2. Open the Pages panel.

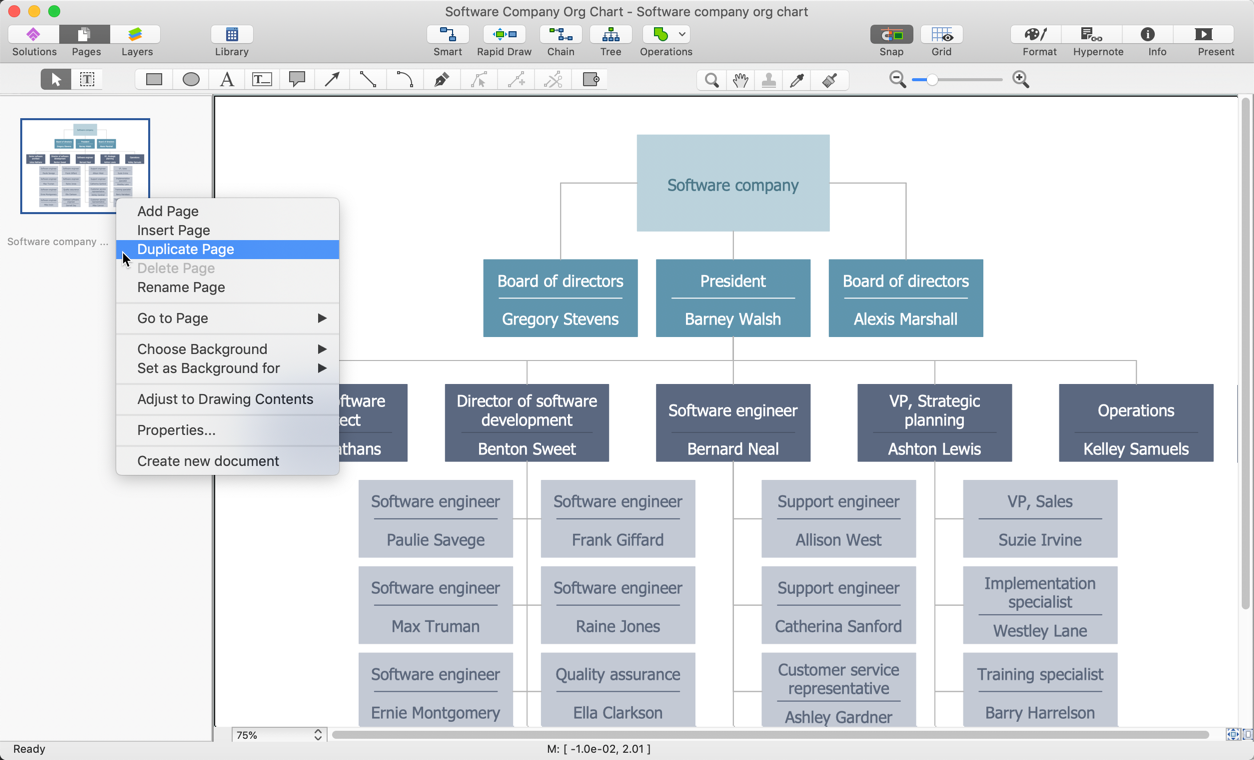

3. Right-click within the Pages panel and select the Duplicate Page command from the context menu.

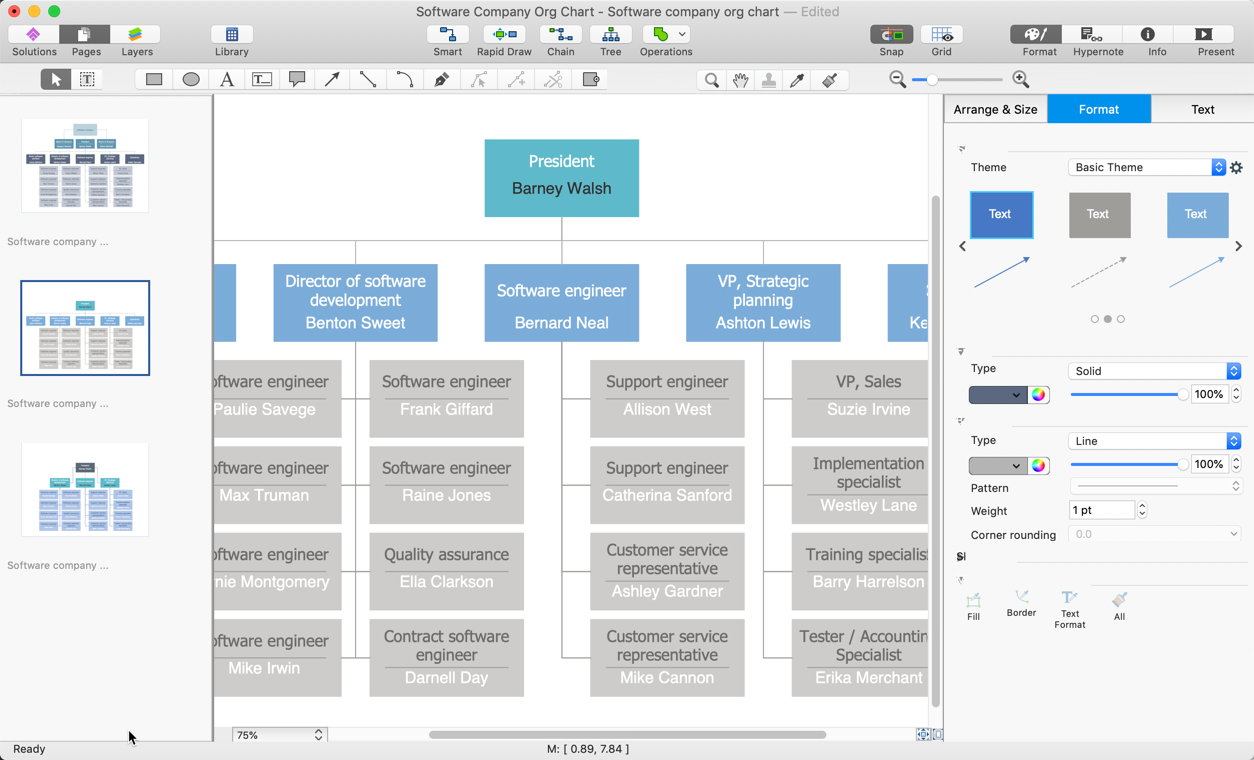

4. A new page containing a duplicate of the original diagram will be added to the document. Modify the duplicated diagram as needed by rearranging objects, editing text, or applying additional formatting options using the Format panel.

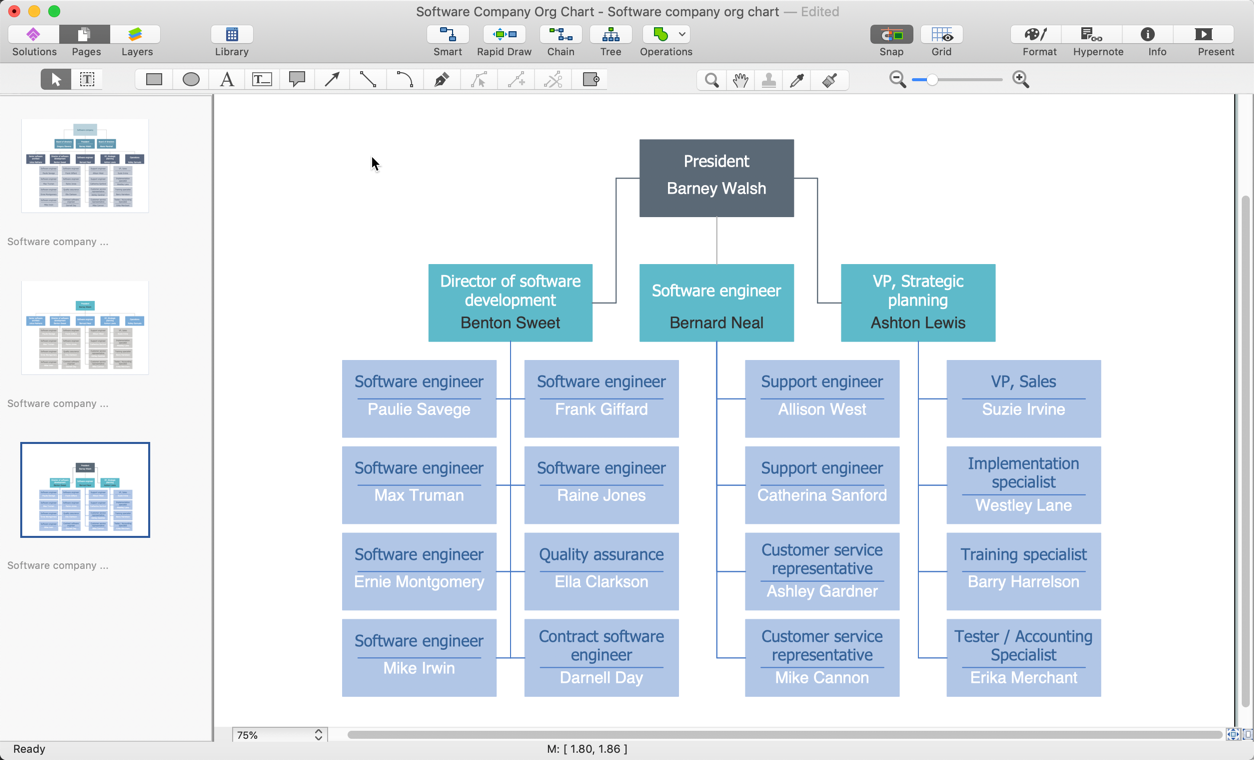

Result: You have created a multi page ConceptDraw DIAGRAM document. Each page contains a separate diagram, while all diagrams remain organized and logically connected within a single document.
