How to Develop Website Wireframes

The development of a website wireframe is an important step in any screen design process. The wireframing tools provided by ConceptDraw's Website Wireframe solution is designed to visualize your concept of website design, including information structure, navigation, and interface elements.

1. Run ConceptDraw DIAGRAM.

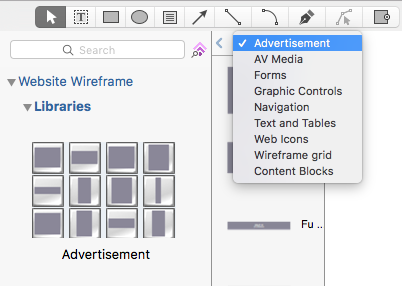

2. Reveal the Website Wireframe item on the Solutions panel.
3. Open libraries from the Website Wireframe section on the Libraries panel.

4. Add elements to your website mock-up by dragging them from the library to the document page.

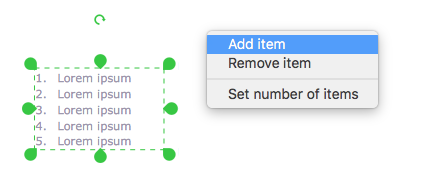

5. Some Website Wireframe libraries contain objects, identified by a blue tile in the library pane. These objects can be edited using the Action button menu. To open the menu select, an object and click the  action button in the upper right corner of the object.

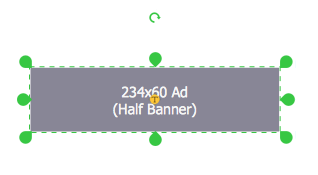

6. You can also use control dots to change the interface element position.

7. Click on a diagram element and start typing to enter text into the mock-up.

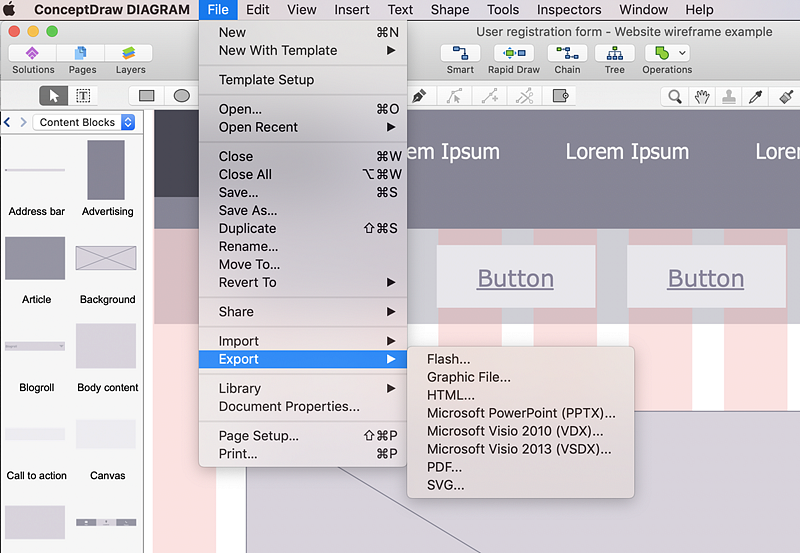

8. Finally, you can export your drawing as MS PowerPoint® and Adobe PDF files using Export options from the File menu.

Result: The ConceptDraw Website Wireframe solution helps to define the information hierarchy of website design, making it easier for web-developers to plan a layout that delivers a positive user experience.
