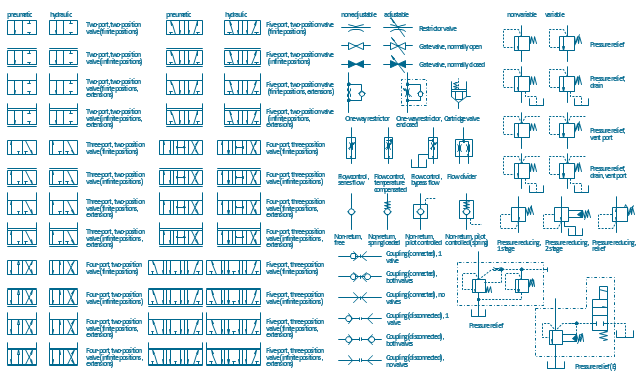

Design elements - Fluid power valves

The vector stencils library "Fluid power valves" contains 93 symbols of pre-made hydraulic and pneumatic valves, including directional control valves, flow control valves, pressure control valves, and electrohydraulic and electropneumatic valves. "Control valves are valves used to control conditions such as flow, pressure, temperature, and liquid level by fully or partially opening or closing in response to signals received from controllers that compare a "setpoint" to a "process variable" whose value is provided by sensors that monitor changes in such conditions. The opening or closing of control valves is usually done automatically by electrical, hydraulic or pneumatic actuators. Positioners are used to control the opening or closing of the actuator based on electric, or pneumatic signals. A control valve consists of three main parts in which each part exist in several types and designs: Valve's actuator, Valve's positioner, Valve's body. " [Control valves. Wikipedia] The shapes example "Design elements - Fluid power valves" was created using the ConceptDraw PRO diagramming and vector drawing software extended with the Mechanical Engineering solution from the Engineering area of ConceptDraw Solution Park.
Fluid power valve symbols
Fluid power valve symbols, two-stage, pressure relief, valve, provision, remote control, two-port, two-position, valve, three-port, two-position, valve, restrictor valve, pressure relief, sequence valve, pressure reducing, regulator, valve, one-way restrictor, valve, free flow, one direction, variable restriction, flow, non-return, valve, gate-valve, four-port, two-position, valve, four-port, three-position, valve, flow divider, valve, flow control, valvel, series flow, flow control, valve, temperature compensated, flow control, valve, bypass flow control, five-port, two-position, valve, five-port, three-position, valve, electrically operated, pressure relief, valve, coupling, disconnected, self-sealing, quick release, mechanically operated valves, coupling, disconnected, self-sealing, quick release, coupling, connected, self-sealing, quick release, mechanically operated valves, coupling, connected, self-sealing, quick release, cartridge valve,
