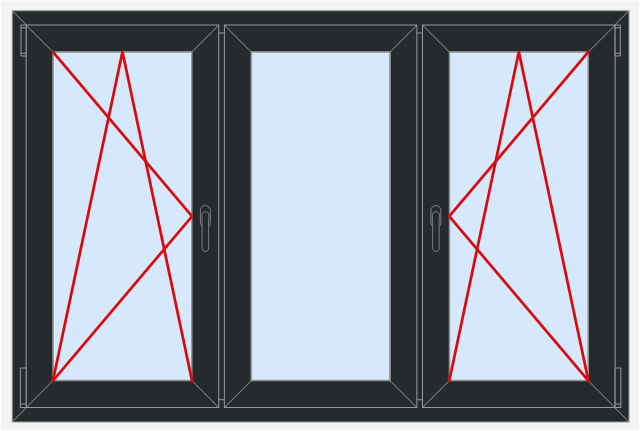

Tilt and turn window, 3 panels, inside

This sketch example shows the inside view of triple panel tilt and turn window. "Glazing and filling[edit] Low-emissivity coated panes reduce heat transfer by radiation, which, depending on which surface is coated, helps prevent heat loss (in cold climates) or heat gains (in warm climates). High thermal resistance can be obtained by evacuating or filling the insulated glazing units with gases such as argon or krypton, which reduces conductive heat transfer due to their low thermal conductivity. Performance of such units depends on good window seals and meticulous frame construction to prevent entry of air and loss of efficiency." [Window. Wikipedia] The sketch sample "Tilt and turn window, 3 panel, inside" was designed using ConceptDraw PRO software extended with Tilt and turn windows solution from Building plans area of ConceptDraw Solution Park.
