ADR 2007 labels of danger

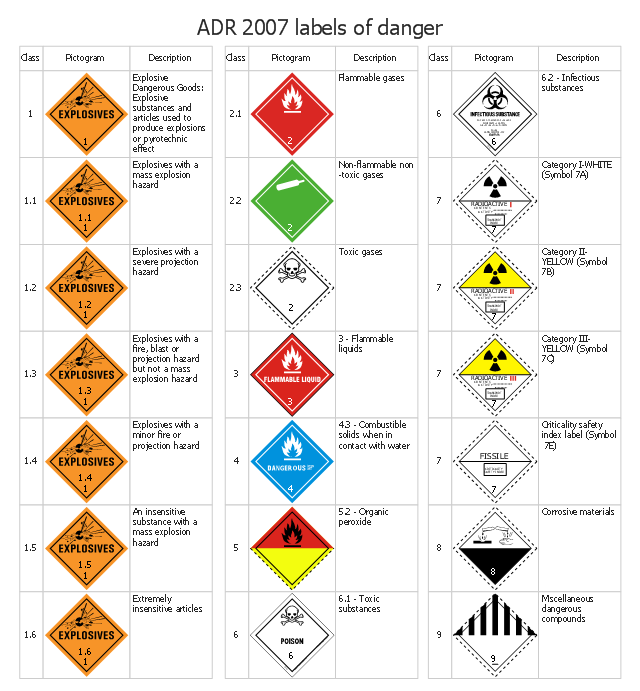

This transportation safety infographic shows the ADR 2007 labels of danger. "Hazard symbols according to the Accord européen relatif au transport international des marchandises Dangereuses par Route (ADR) (European agreement about international transport of hazardous goods by road) and Reglement concernant le transport international ferroviaire de marchandises Dangereuses (RID) (Rules about international railway transport of hazardous goods), promoted by UNECE ECOSOC (Dangerous Goods, unece.org). Also used by International Maritime Code for Dangerous Goods (IMDG) for overseas shipping by UN-IMO, International Maritime Organization (IMDG-Code, imo.org)." [ADR labels of danger. Wikimedia Commons] The GHS transport hazard symbols infographic example "ADR 2007 labels of danger" was designed using ConceptDraw PRO software extended with the Transport Hazard Pictograms solution from the Engineering area of ConceptDraw Solution Park.
