Comtech - Vector stencils library

The vector stencils library "Comtech" contains 9 icons of Comtech devices for drawing computer network diagrams and telecommunication equipment layouts. "Comtech EF Data Corporation ... communication solutions encompass Advanced VSAT Solutions, Modems, RAN & WAN Optimization, Network & Bandwidth Management, RF Products ... for fixed and mobile/transportable satellite-based applications." [comtechefdata.com] The clip art example "Comtech - Vector stencils library" was created using the ConceptDraw PRO diagramming and vector drawing software extended with the Telecommunication Network Diagrams solution from the Computer and Networks area of ConceptDraw Solution Park.
CDD-562L & CDD-562LEN dual IP demodulator
CDD-562L & CDD-562LEN dual IP demodulator, CDD-562L, CDD-562, LEN Dual IP Demodulator,

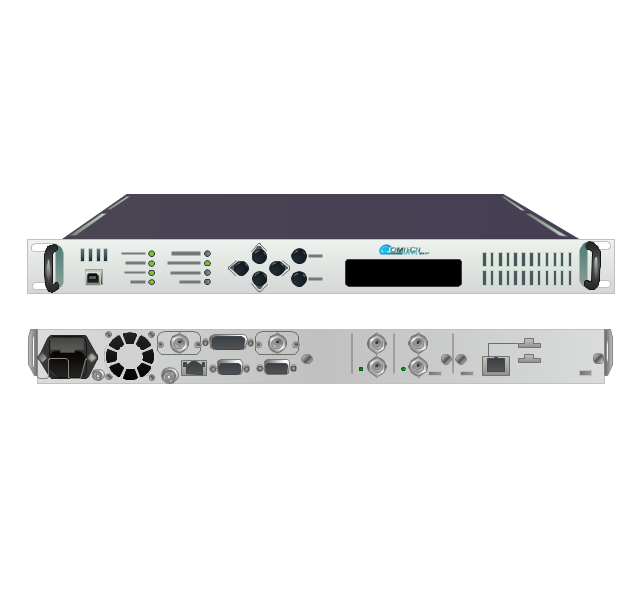

CDM-700G high-speed satellite modem
CDM-700G high-speed satellite modem, CDM-700 G, High-Speed Satellite Modem,

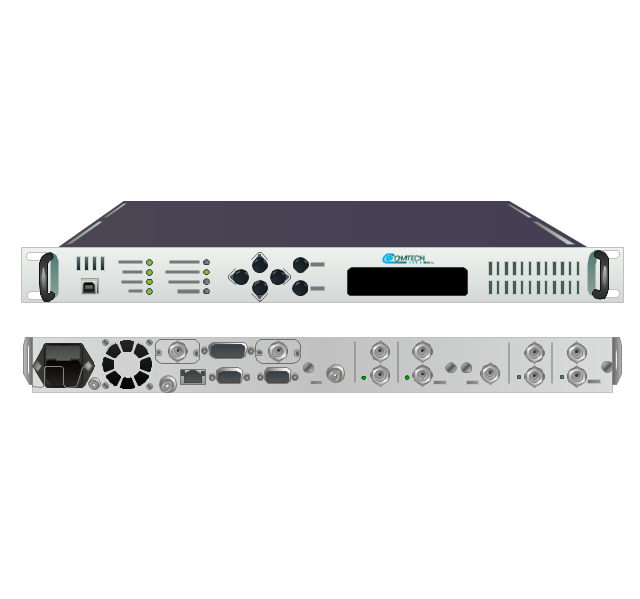

CDM-710G high-speed satellite modem
CDM-710G high-speed satellite modem, CDM-710 G, High-Speed Satellite Modem,

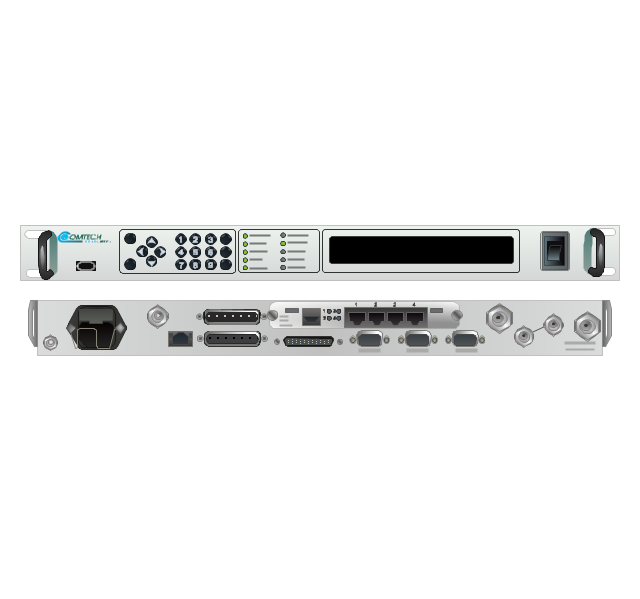

SLM-5650A satellite modem
SLM-5650A satellite modem, SLM-5650A, Satellite Modem,

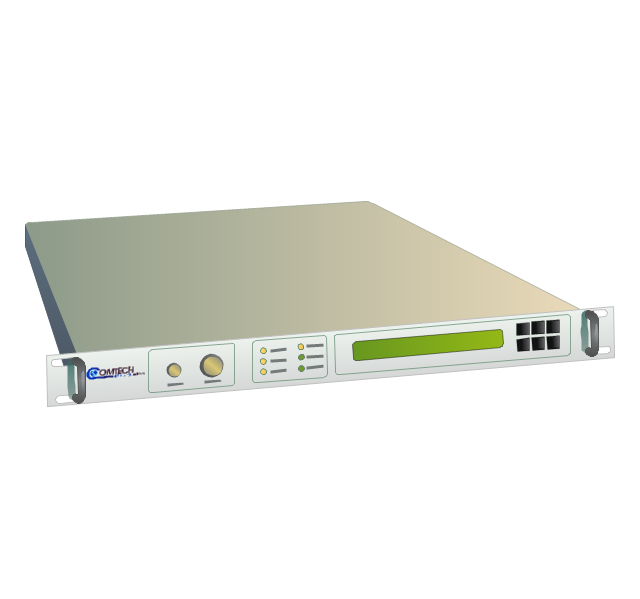

UT-4505 series up converters
UT-4505 series up converters, UT-4505 Series, Up Converter,

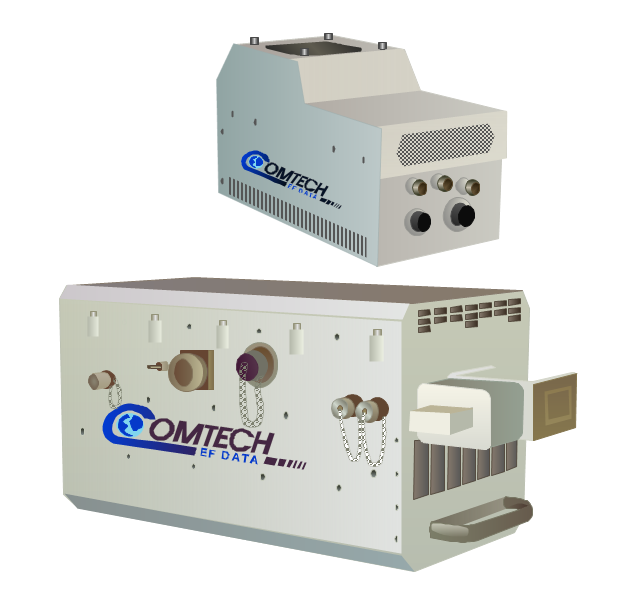

LPOD C- or Ku-band block up converters
LPOD C- or Ku-band block up converters, LPOD, C-Band, Ku-Band, Block Up Converter, BUC,

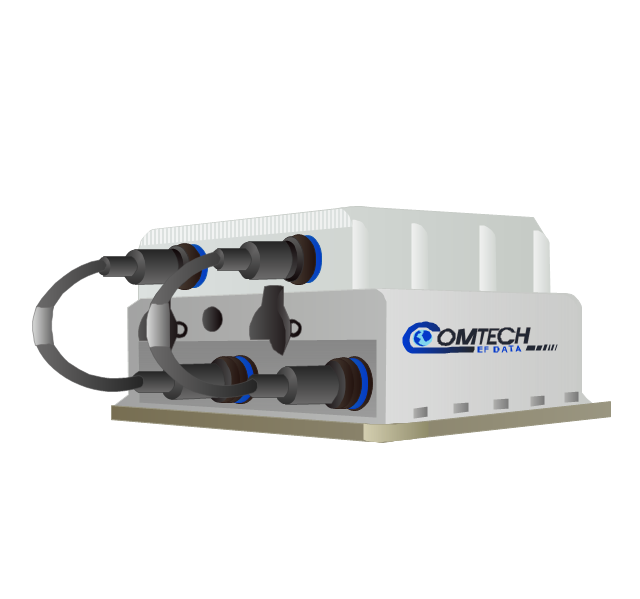

MBT-4000/ MBT-4000B outdoor multi-band RF transceiver
MBT-4000/ MBT-4000B outdoor multi-band RF transceiver, MBT-4000, MBT-4000B, Outdoor Multi-Band RF Transceiver,

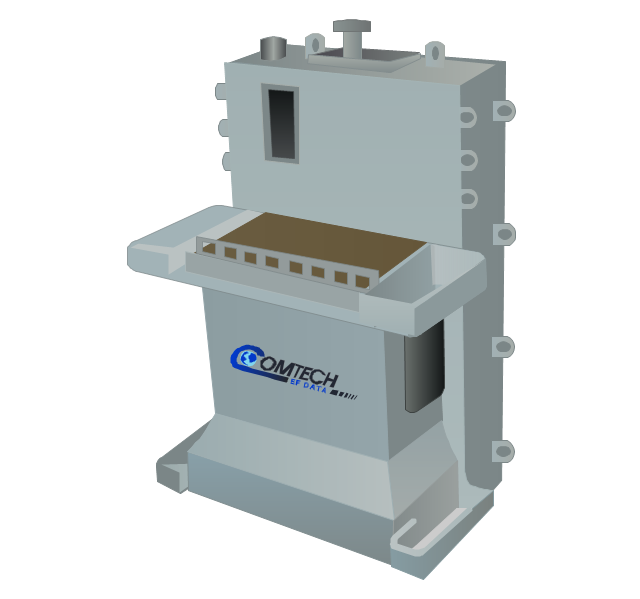

High-Power Outdoor C-, X- & Ku-band outdoor amplifier (HPOD)
High-Power Outdoor C-, X- & Ku-band outdoor amplifier (HPOD), High-Power Outdoor, C-Band, X-Band, Ku-Band, Outdoor Amplifier, HPOD,

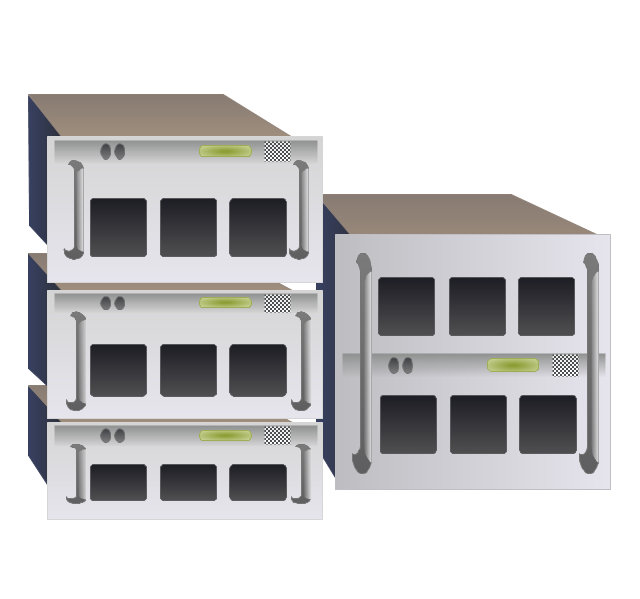

Indoor solid state power amplifiers (SSPA)
Indoor solid state power amplifiers (SSPA), Outdoor Solid State Power Amplifier, CPA-200, CPA-50,
