Solution architecture: SAP on Azure

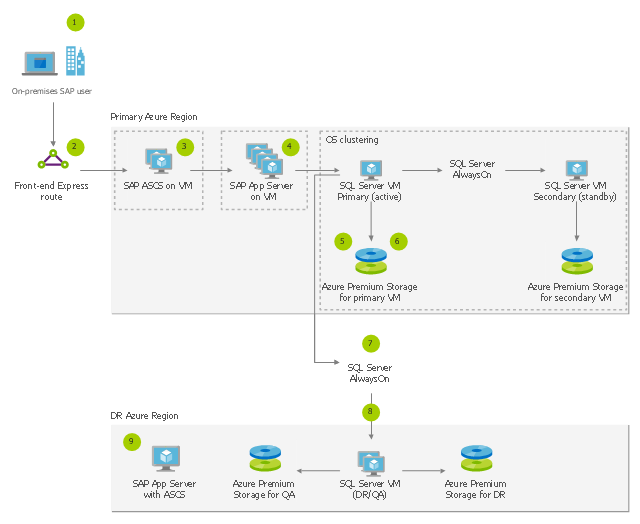

This Azure architecture diagram sample illustrates SAP NetWeaver on Microsoft SQL Server application solution. It was designed on the base of the Azure architecture diagram from the Microsoft Azure website. [azure.microsoft.com/en-in/solutions/architecture/sap-netweaver-on-sql-server/] "SAP NetWeaver is a technology of the software company SAP SE, and the technical foundation for many SAP applications. It is a solution stack of SAP's technology products. The SAP NetWeaver Application Server (sometimes referred to as WebAS) is the runtime environment for the SAP applications, and all of the mySAP Business Suite runs on SAP WebAS: supplier relationship management (SRM), customer relationship management (CRM), supply chain management (SCM), product lifecycle management (PLM), enterprise resource planning (ERP), transportation management system (TMS). The product is marketed as a service-oriented architecture for enterprise application integration." [SAP NetWeaver. Wikipedia] The Azure architecture diagram example "Solution architecture: SAP on Azure" was designed using ConceptDraw PRO software extended with Azure Architecture solution from Computer and Networks area of ConceptDraw Solution Park.
