EXPRESS-G data type symbols

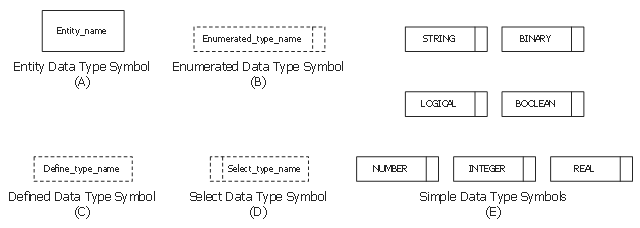

This sample shows the EXPRESS-G notation data type symbols. This example was drawn on the base of the Wikimedia Commons file: A 02A Data type symbols.svg. [commons.wikimedia.org/wiki/File:A_02A_Data_type_symbols.svg] This file is made available under the Creative Commons CC0 1.0 Universal Public Domain Dedication. [creativecommons.org/publicdomain/zero/1.0/deed.en] "EXPRESS offers a series of datatypes, with specific data type symbols of the EXPRESS-G notation: * Entity data type... * Enumeration data type... * Defined data type... * Select data type... * Simple data type * String... * Binary... * Logical... * Boolean... * Number... * Integer... * Real... * Aggregation data type" [EXPRESS (data modeling language). Wikipedia] The EXPRESS-G notation example "EXPRESS-G data type symbols" was designed using ConceptDraw PRO software extended with EXPRESS-G solution from the Software Development area of ConceptDraw Solution Park.
