Switches - Vector stencils library

The vector stencils library "Switches" contains 25 symbols of electrical switches. Use it for drawing electrical design floor and building plans, devices and equipment layouts in the ConceptDraw PRO diagramming and vector drawing software. The vector stencils library "Switches" is included in the Electric and Telecom Plans solution from the Building Plans area of ConceptDraw Solution Park.

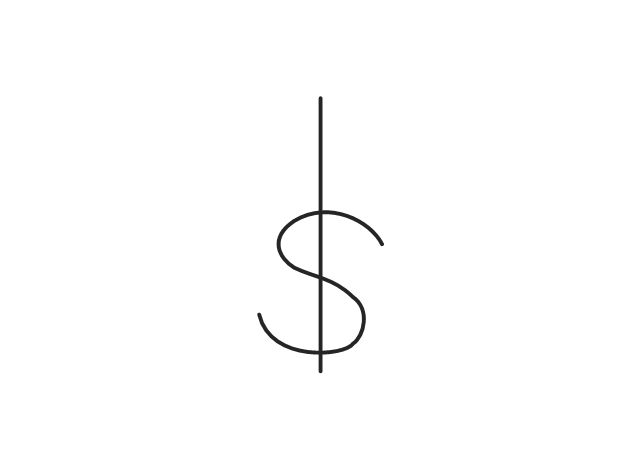

Single pole switch

Single pole switch, single pole switch,

Switch control

Switch control, switch control,

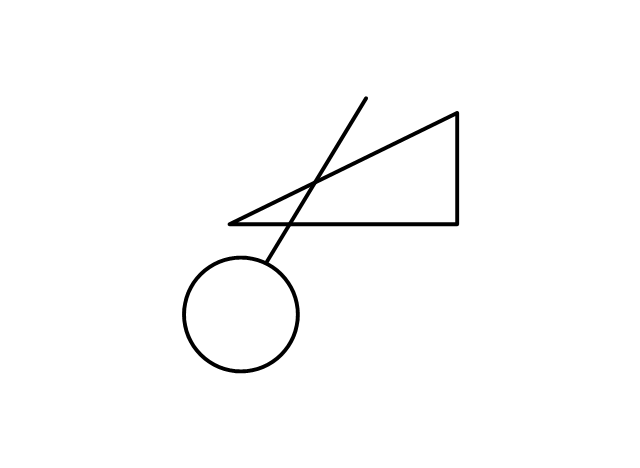

Dimmer switch

Dimmer switch, dimmer switch,

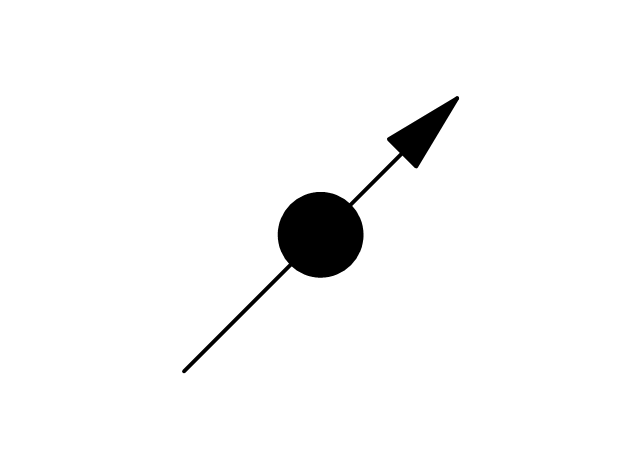

Dimmer switch 2

Dimmer switch 2, dimmer switch,

Double Pole Switch

Double Pole Switch, double pole switch,

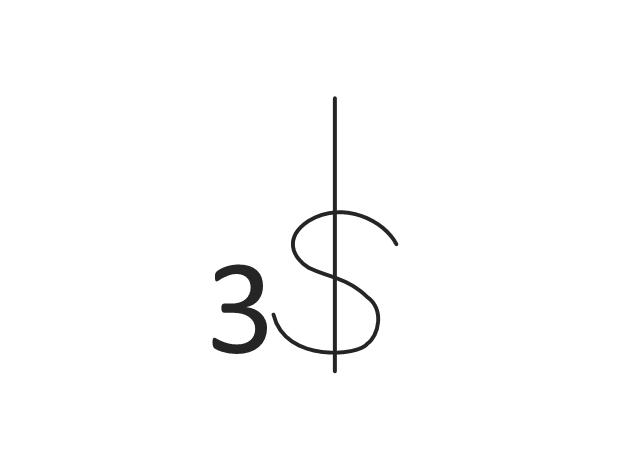

Three-way switch

Three-way switch, three-way switch,

Four-way switch

Four-way switch, four-way switch,

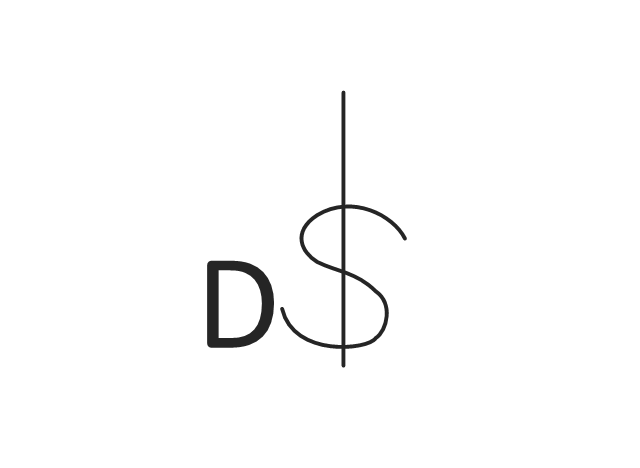

Automatic door switch

Automatic door switch, automatic door switch,

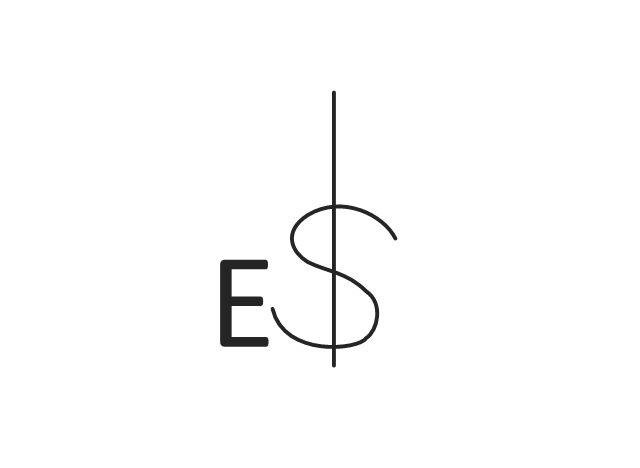

Electrolier switch

Electrolier switch, electrolier switch,

Key operated switch

Key operated switch, key operated switch,

Switch and pilot lamp

Switch and pilot lamp, switch, pilot lamp,

Key operated switch with pilot light

Key operated switch with pilot light, key operated switch, pilot light,

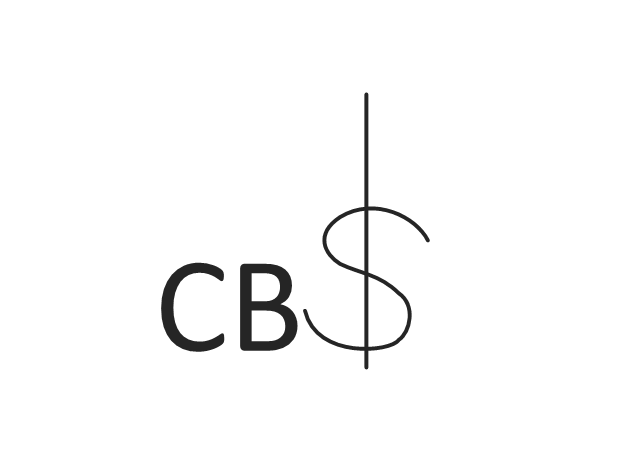

Circuit breaker

Circuit breaker, circuit breaker,

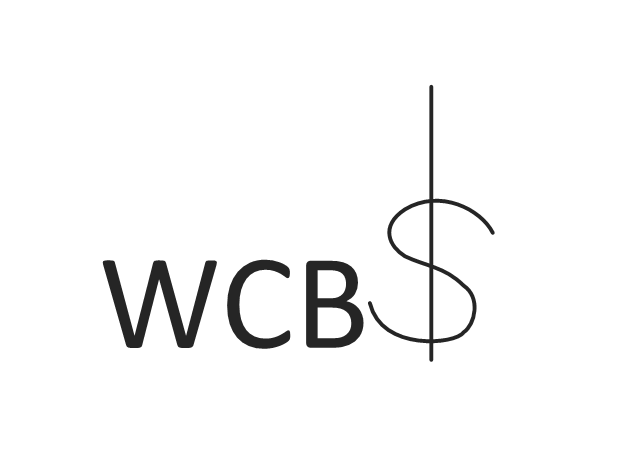

Weatherproof circuit breaker

Weatherproof circuit breaker, weatherproof, circuit breaker,

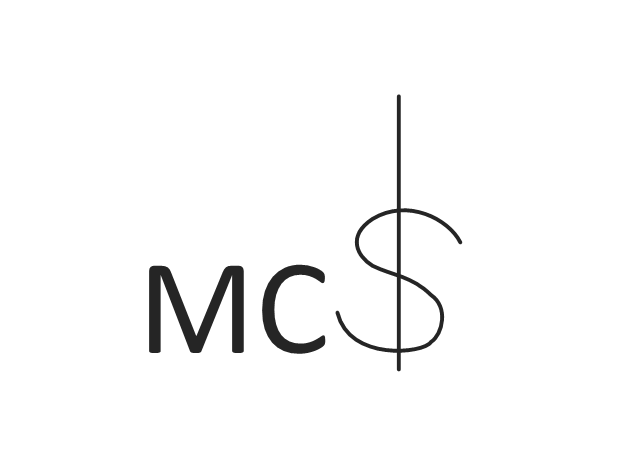

Momentary contact switch

Momentary contact switch, momentary contact switch,

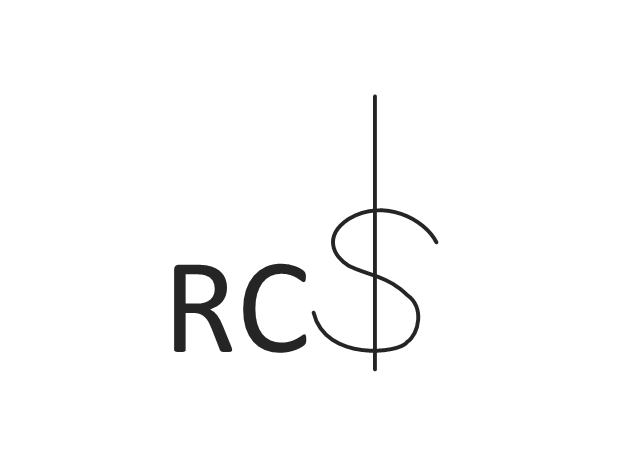

Remote control switch

Remote control switch, remote control switch,

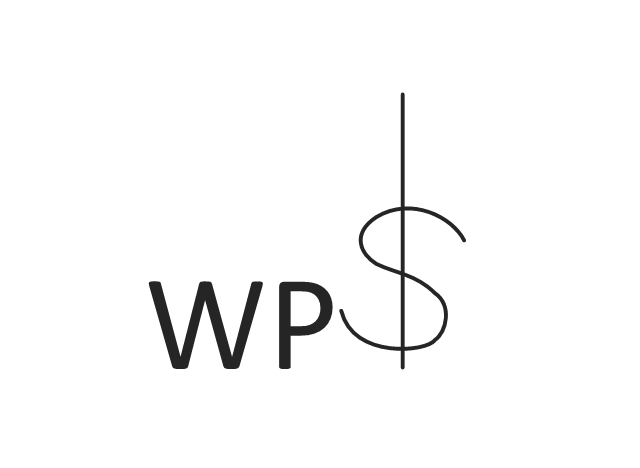

Weatherproof switch

Weatherproof switch, weatherproof switch,

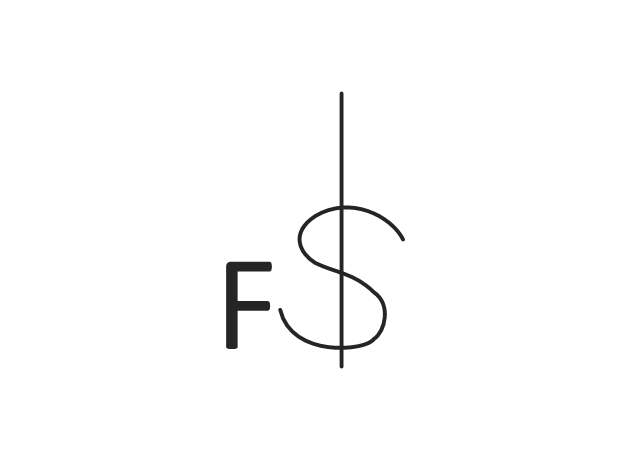

Fused switch

Fused switch, fused switch,

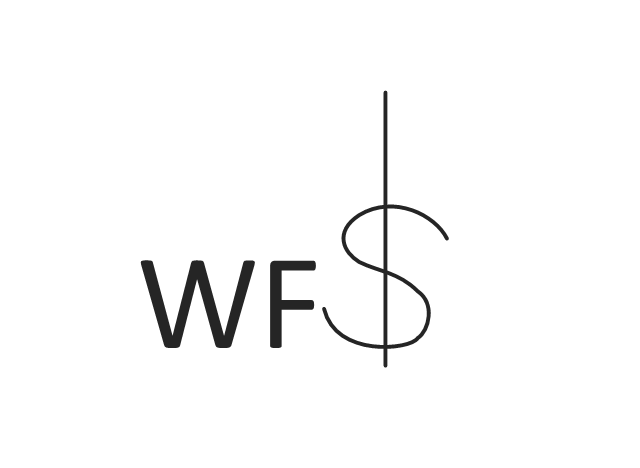

Weatherproof fused switch

Weatherproof fused switch, weatherproof fused switch,

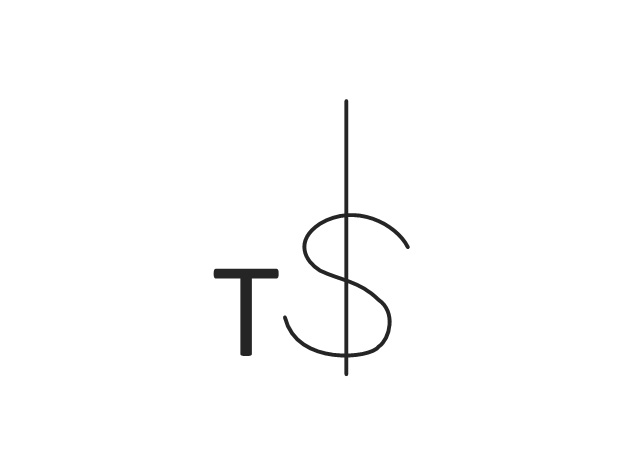

Switch with timer

Switch with timer, switch, timer,

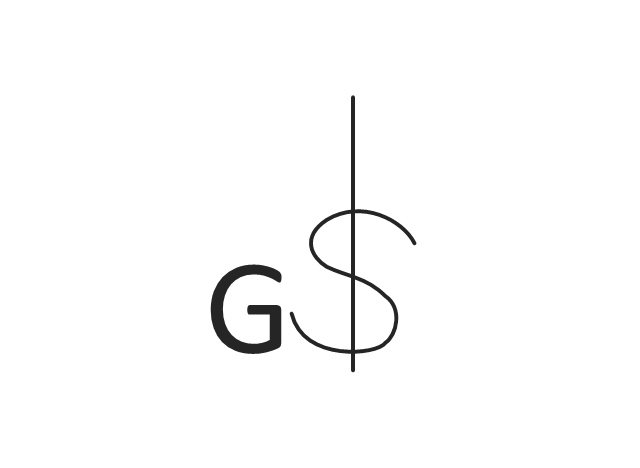

Glow switch toggle

Glow switch toggle, glow switch toggle,

Horizontally mounted switch

Horizontally mounted switch, horizontally mounted, switch,

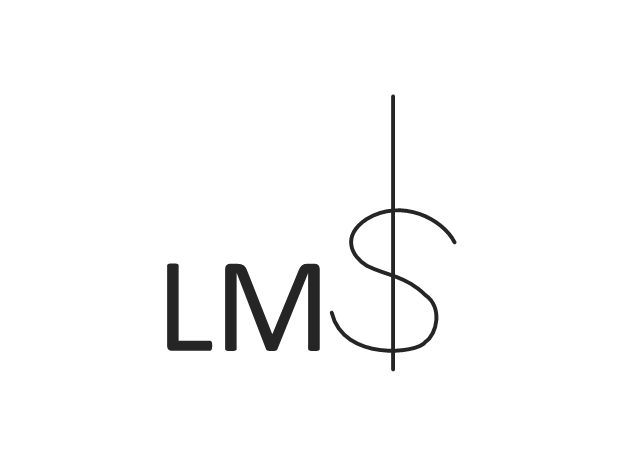

Low voltage master switch

Low voltage master switch, low voltage, master switch,

Low voltage switch

Low voltage switch, low voltage, switch,

Single pole double throw switch

Single pole double throw switch, single pole, double throw switch,
