Residential Network Including VoIP

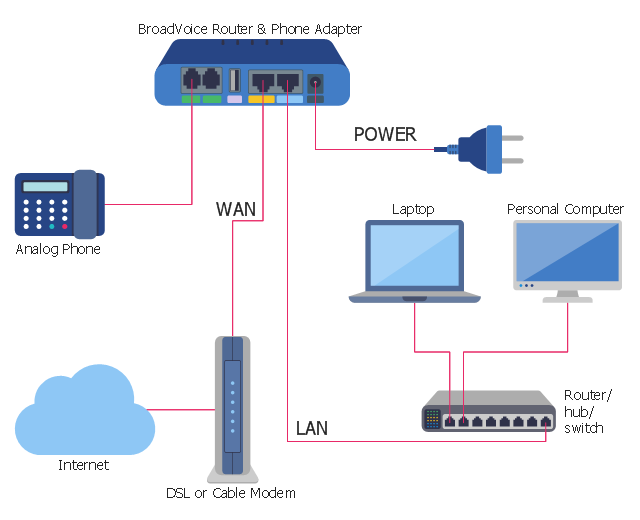

This diagram illustrates the residential network including VoIP. This IVR diagram sample was designed on the base of Wikimedia Commons file: Voip-typical.gif. [commons.wikimedia.org/wiki/File:Voip-typical.gif] This file is licensed under the Creative Commons Attribution 1.0 Generic license. [creativecommons.org/licenses/by/1.0/deed.en] "Mass-market VoIP services use existing broadband Internet access, by which subscribers place and receive telephone calls in much the same manner as they would via the public switched telephone network (PSTN). Full-service VoIP phone companies provide inbound and outbound service with direct inbound dialing. Many offer unlimited domestic calling and sometimes international calls for a flat monthly subscription fee. Phone calls between subscribers of the same provider are usually free when flat-fee service is not available. A VoIP phone is necessary to connect to a VoIP service provider." [Voice over IP. Wikipedia] The diagram example "Residential Network Including VoIP" was designed using ConceptDraw PRO software extended with the Interactive Voice Response Diagrams solution from the Computer and Networks area of ConceptDraw Solution Park.
