Citric acid cycle (TCA cycle)

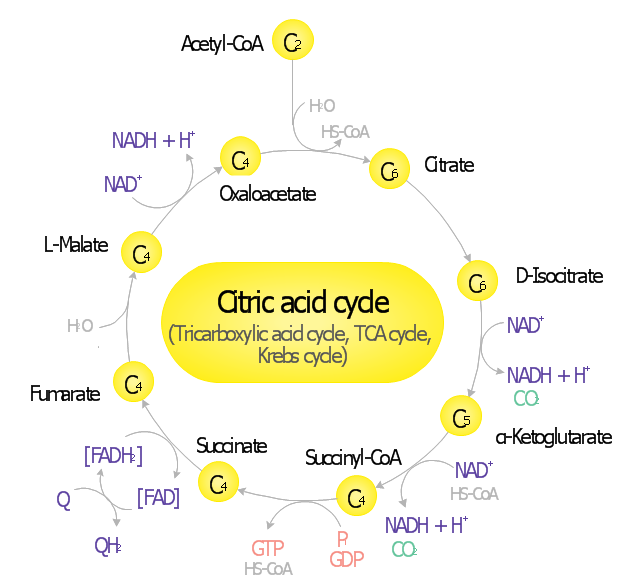

"Citric acid cycle (tricarboxylic acid cycle, TCA cycle, Krebs cycle) is a series of chemical reactions used by all aerobic organisms to generate energy through the oxidation of acetate derived from carbohydrates, fats and proteins into carbon dioxide and chemical energy in the form of adenosine triphosphate (ATP)." [Citric acid cycle. Wikipedia] This biochemical diagram example shows metabolic pathways map of citric acid cycle reactions. This sample was redesigned from the Wikimedia Commons file: TCA cycle.svg. [commons.wikimedia.org/wiki/File:TCA_cycle.svg] This image is licensed under the Creative Commons Attribution 3.0 Unported license. [creativecommons.org/licenses/by/3.0/deed.en] The metabolic pathway map example "Citric acid cycle (TCA cycle)" was created using the ConceptDraw PRO diagramming and vector drawing software extended with the Biology solution from the Science and Education area of ConceptDraw Solution Park.
