Electron tubes - Vector stencils library
The vector stencils library "Electron tubes" contains 36 element symbols of electron tubes.
Use it for drawing electrical schematics and electronic circuit diagrams in the ConceptDraw PRO diagramming and vector drawing software extended with the Electrical Engineering solution from the Engineering area of ConceptDraw Solution Park.
www.conceptdraw.com/solution-park/engineering-electrical

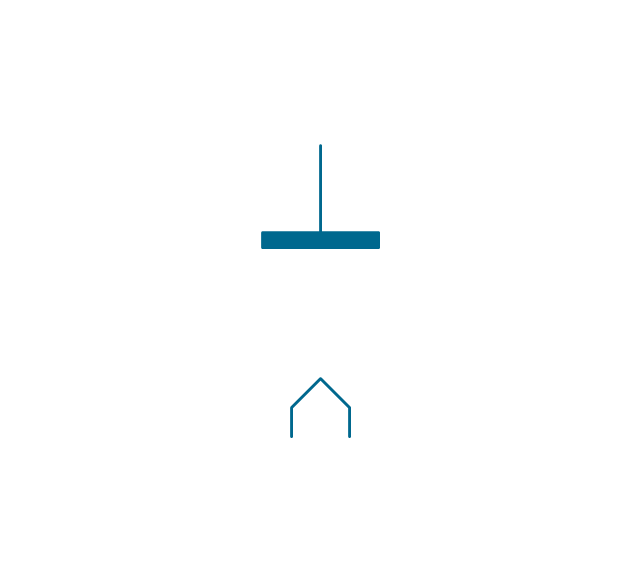

Diode, directly heated

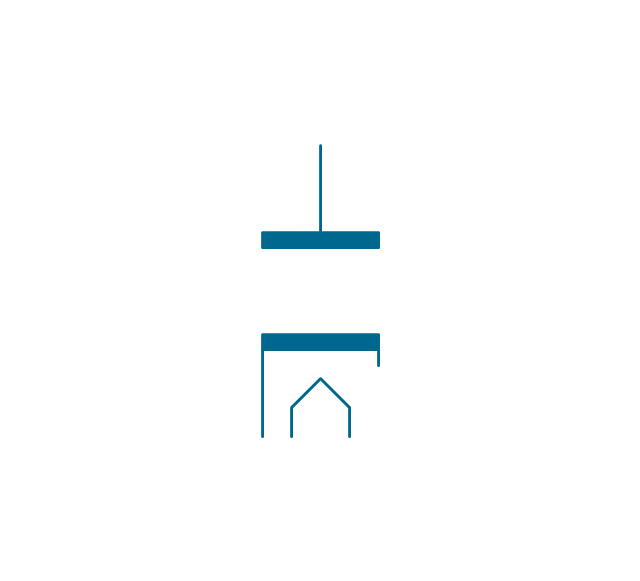

Diode, indirectly heated

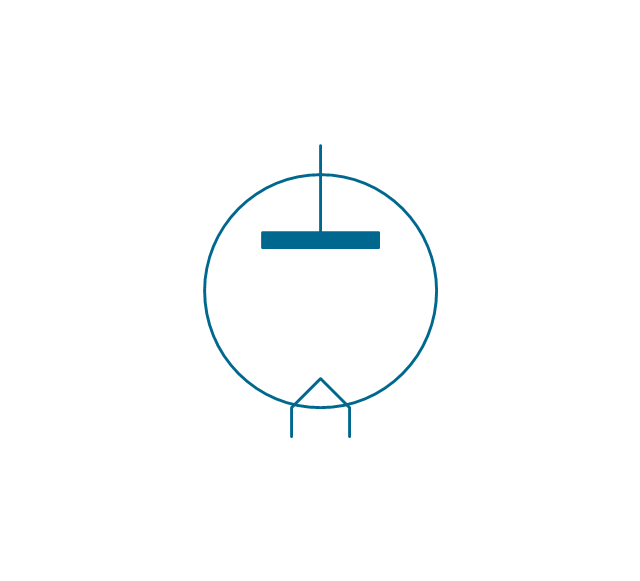

Diode, envelope, direct. heated
Diode, envelope, indirect. heated
Triode, directly heated
Triode, indirectly heated

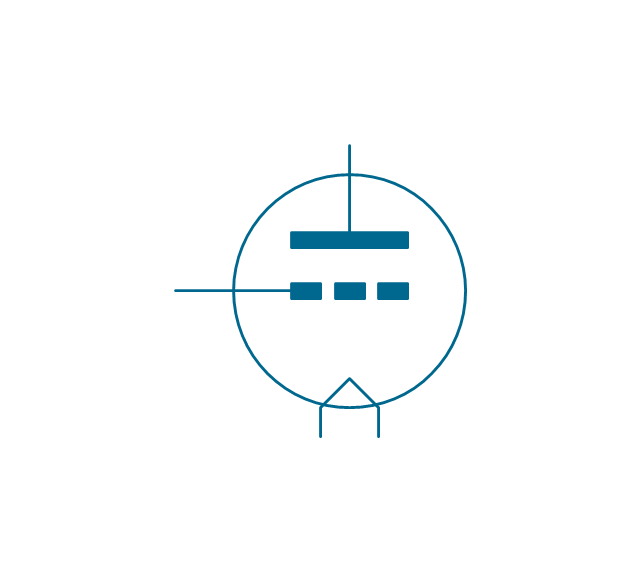

Triode, envelope, direct. heated
Triode, envelope, indirect. heated

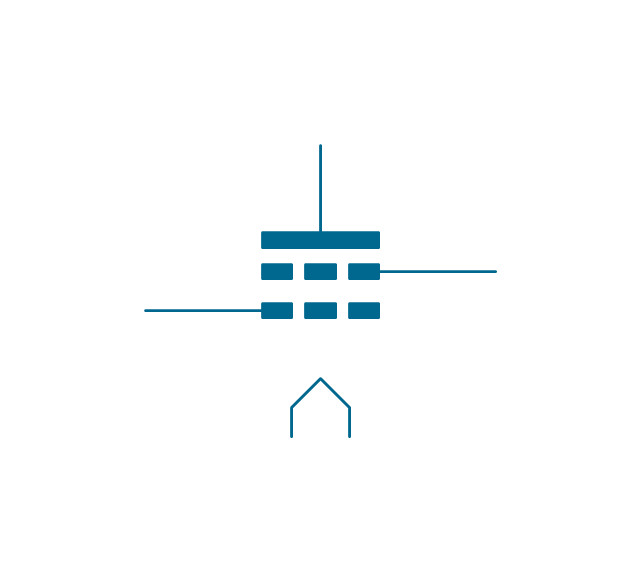

Tetrode, directly heated

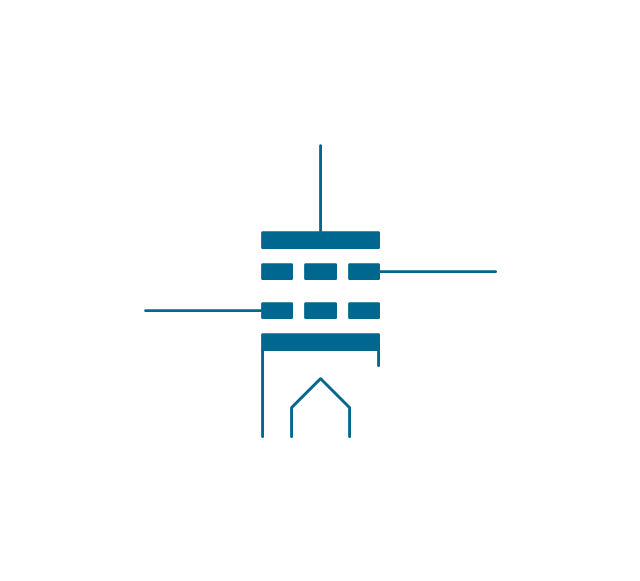

Tetrode, indirectly heated
Tetrode, envelope, direct. heated
Tetrode, envelope, indirect. heated

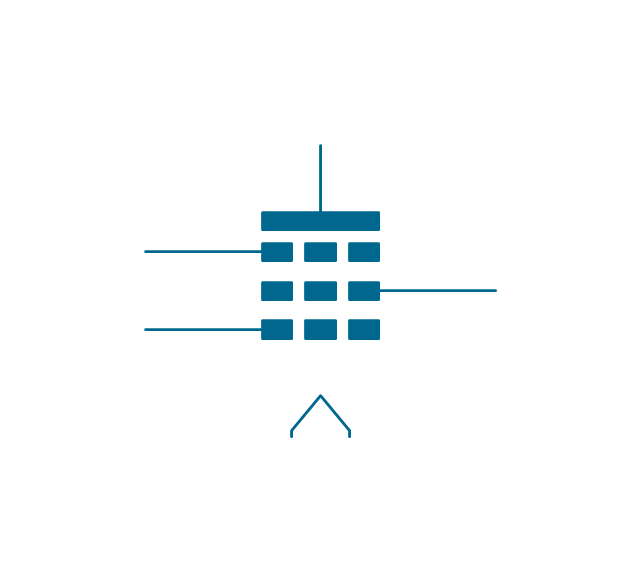

Pentode, directly heated

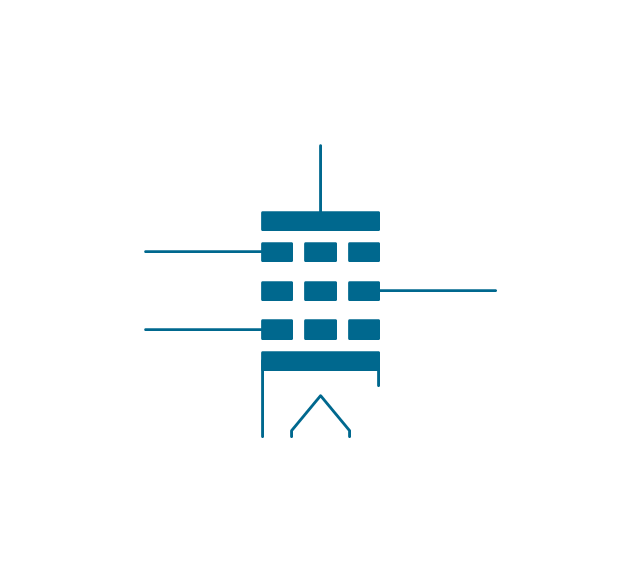

Pentode, indirectly heated, external connection

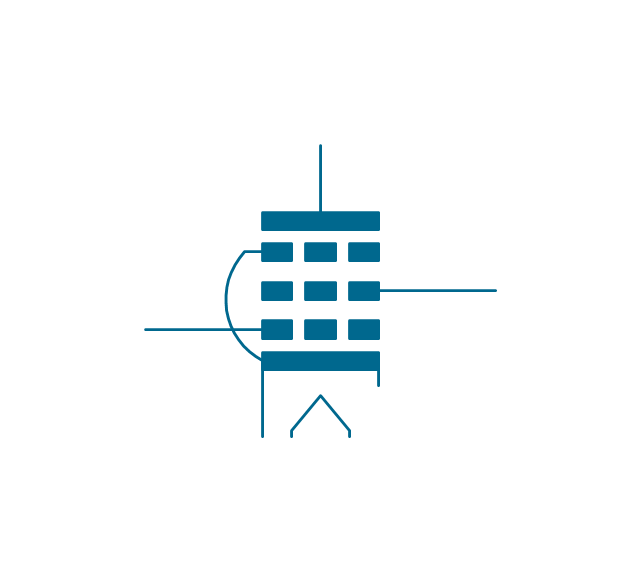

Pentode, indirectly heated, internal connection
Pentode, envelope, direct. heated

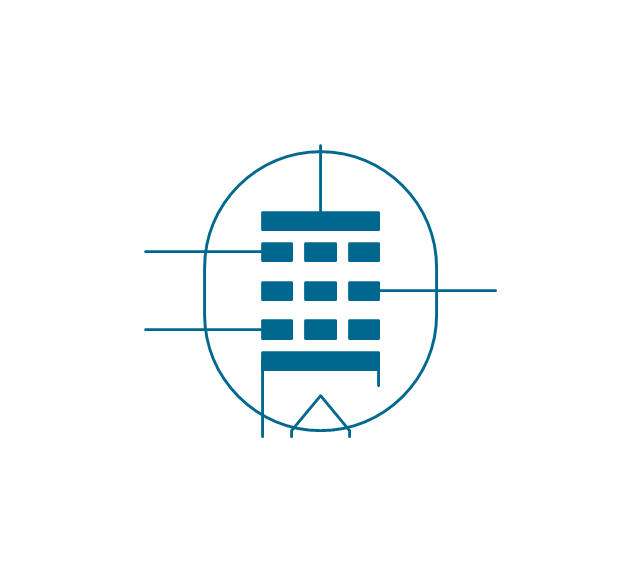

Pentode, envelope, indirect. heated, external connection
Pentode, envelope, indirect. heated, internal connection

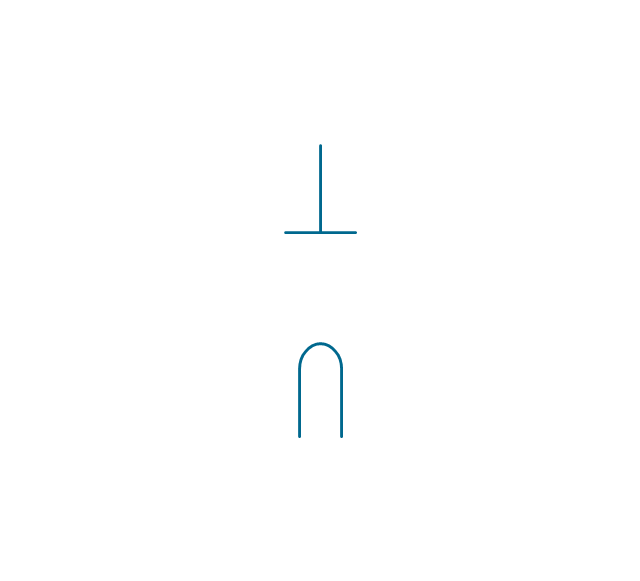

Diode, directly heated 2

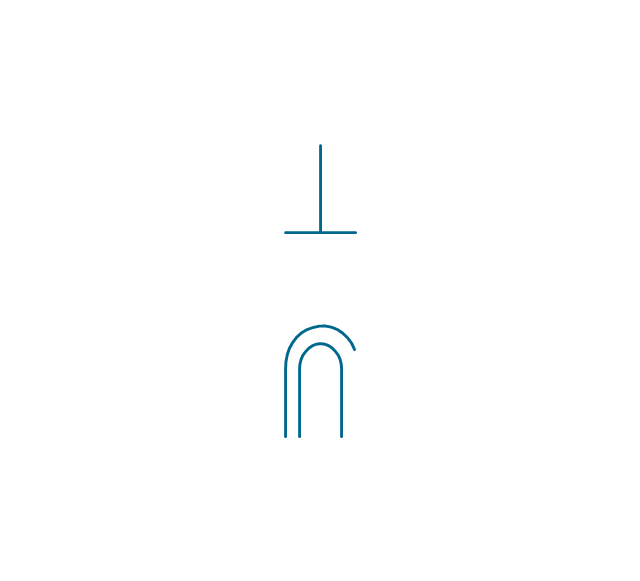

Diode, indirectly heated 2
Diode, envelope, direct. heated 2
Diode, envelope, indirect. heated 2

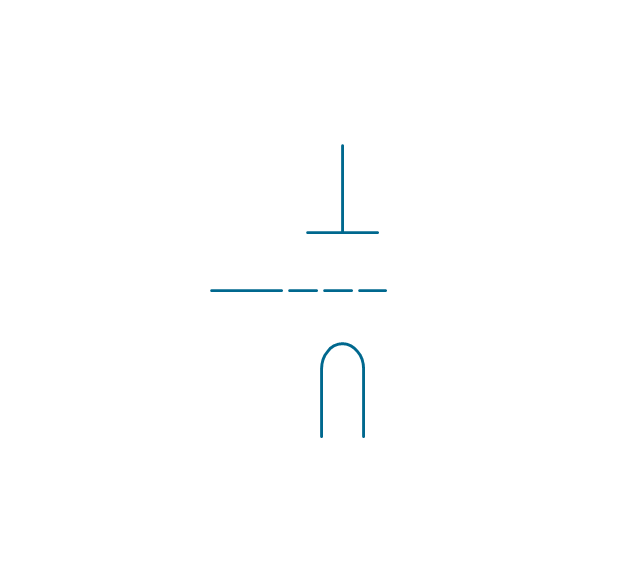

Triode, directly heated 2
Triode, indirectly heated 2

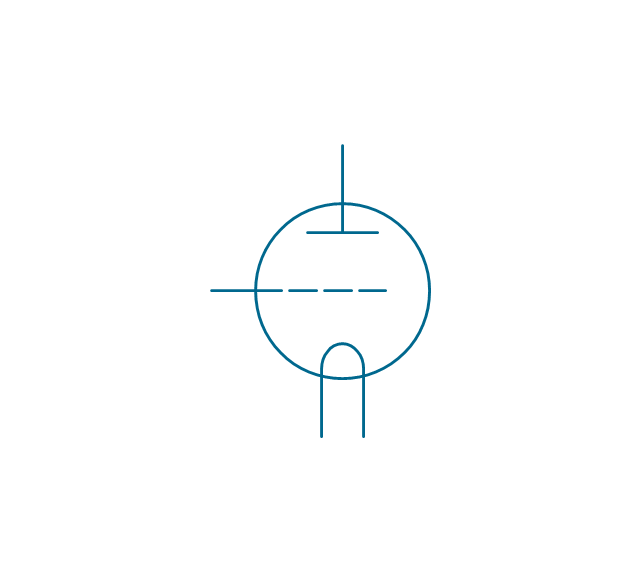

Triode, envelope, direct. heated 2

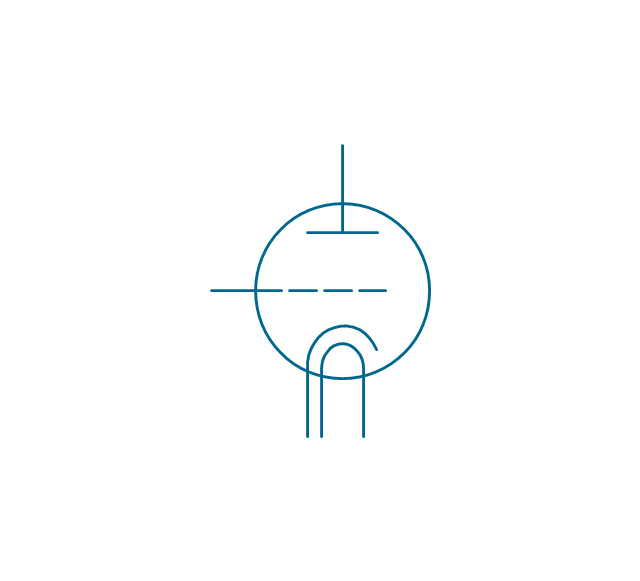

Triode, envelope, indirect. heated 2
Tetrode, directly heated 2
Tetrode, indirectly heated 2

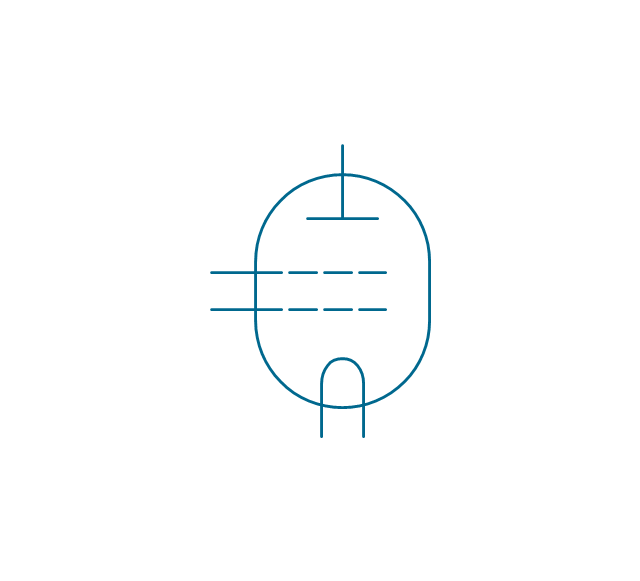

Tetrode, envelope, direct. heated 2

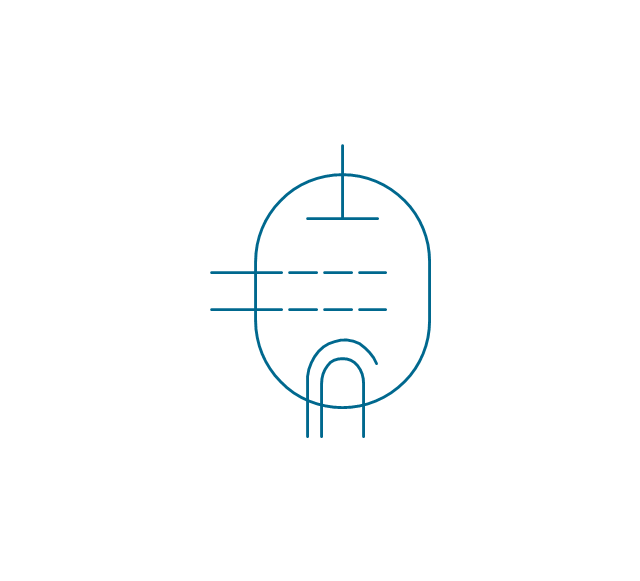

Tetrode, envelope, indirect. heated 2
Pentode, directly heated 2
Pentode, indirectly heated, external connection 2
Pentode, indirectly heated, internal connection 2

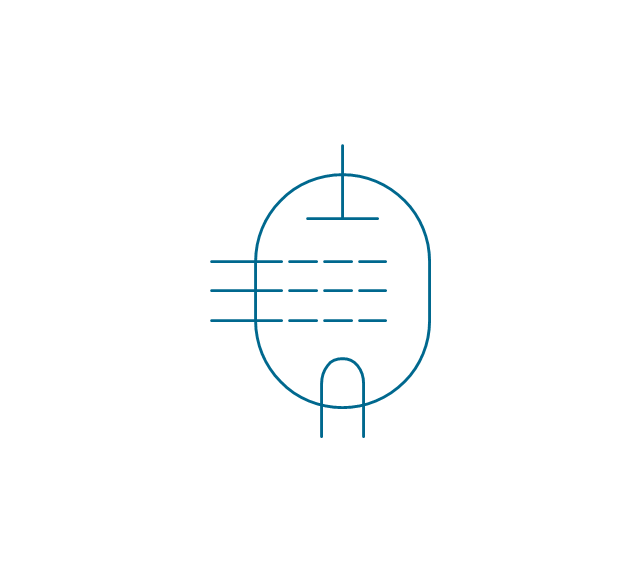

Pentode, envelope, direct. heated 2
Pentode, envelope, indirect. heated, external connection 2
Pentode, envelope, indirect. heated, internal connection 2
